Data products for July 7, 2016

---

NOTE:

Support Data
View	Filename	Type	Descriptions and Comments
	map_16633_07jul16.gif	GIF	Map showing flight track for this day
Quick Analysis
View	Filename	Type	Descriptions and Comments

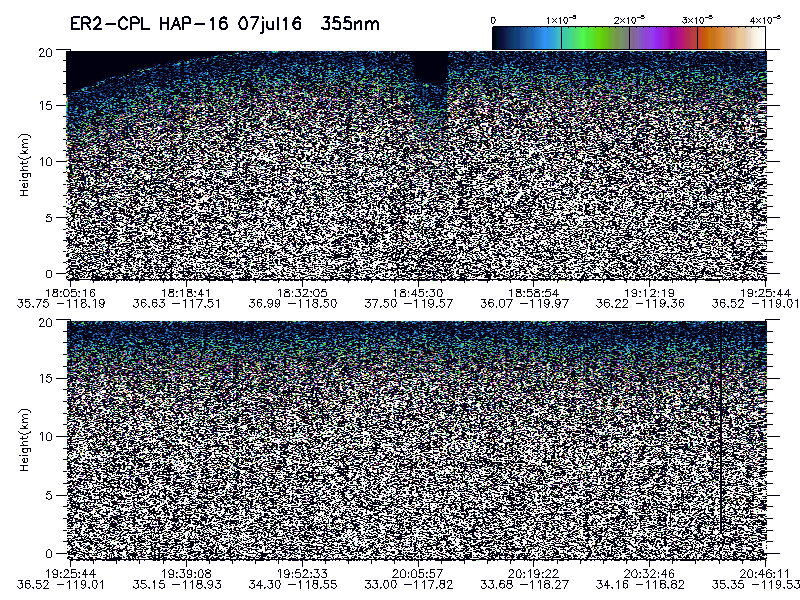

	imgsum_16633_07jul16_355.gif	GIF	Flight summary image showing whole flight for 355 nm

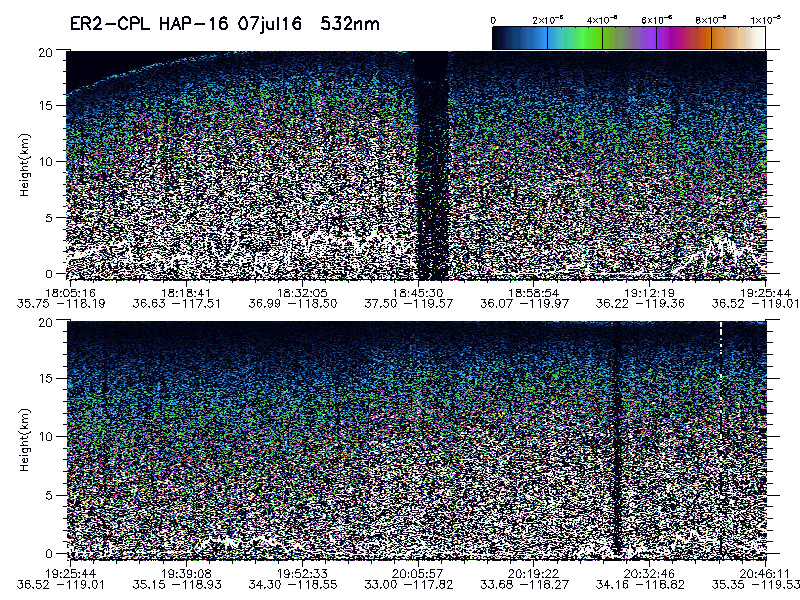

	imgsum_16633_07jul16_532.gif	GIF	Flight summary image showing whole flight for 532 nm

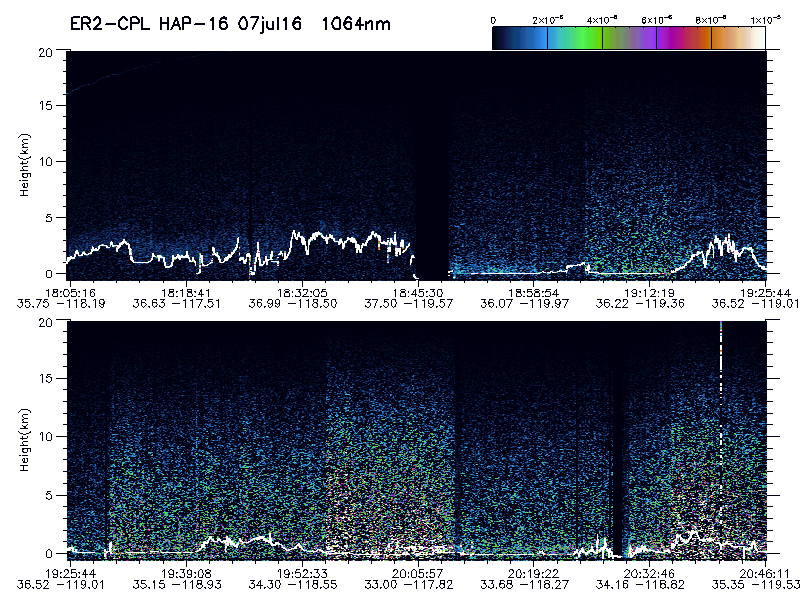

	imgsum_16633_07jul16_1064.gif	GIF	Flight summary image showing whole flight for 1064 nm
	imgsum_16633_07jul16_depol.gif	GIF	Flight summary image showing whole flight for depolarization
The following are 30 minute images showing 355, 532, and 1064 backscatter signals plus depolarizaton ratio for 1064:

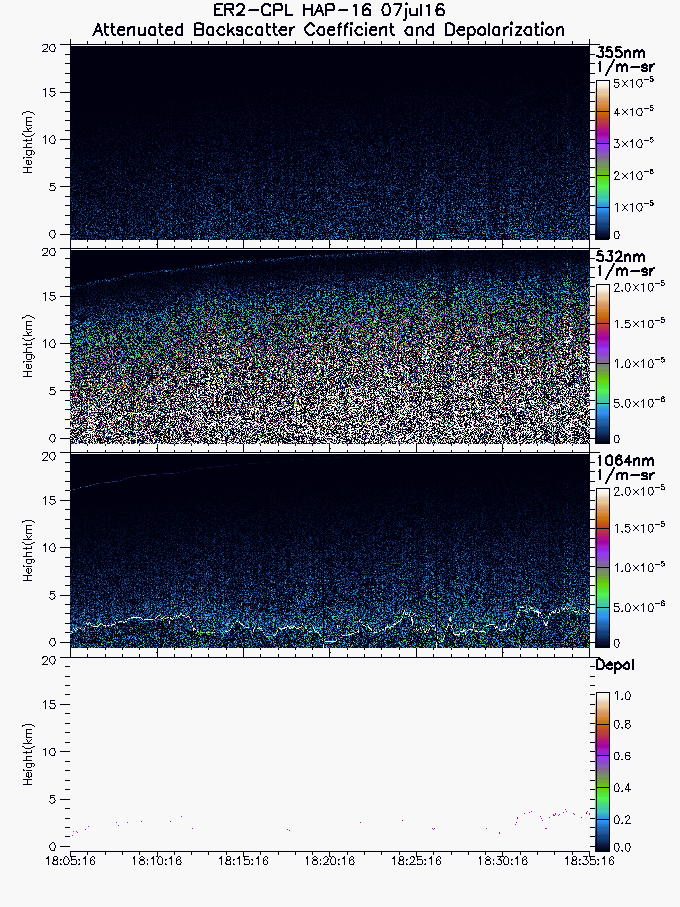

	imgseg01_16633_07jul16.gif	GIF	Start time = 18:05:16 End time = 18:35:16

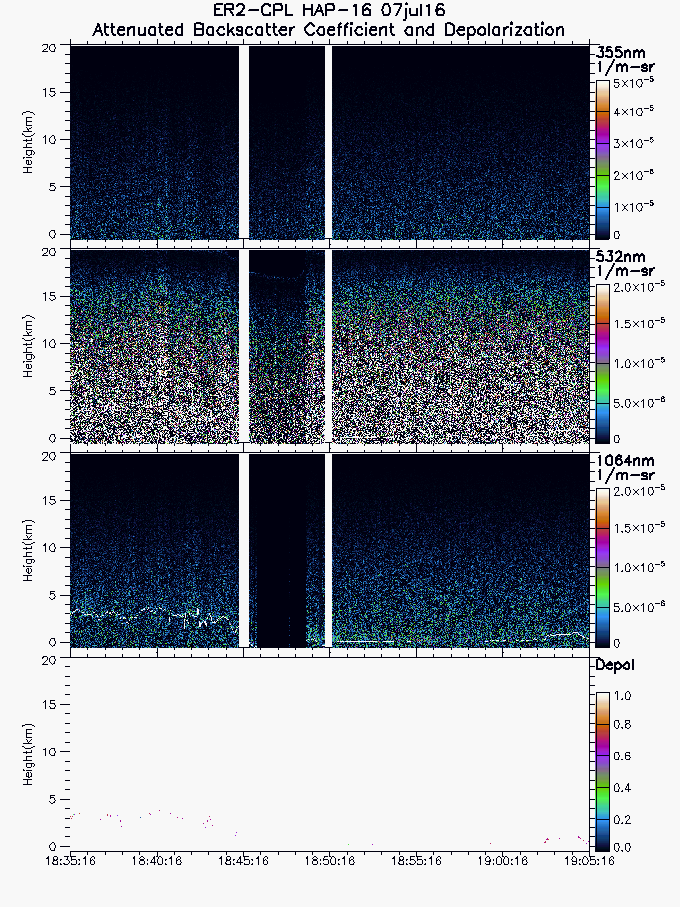

	imgseg02_16633_07jul16.gif	GIF	Start time = 18:35:16 End time = 19:05:16

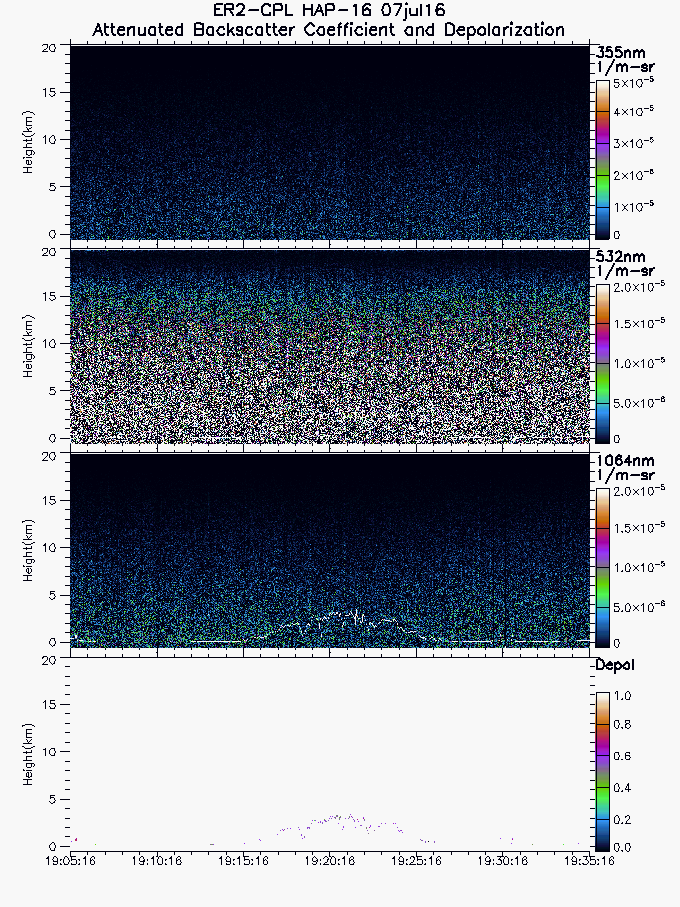

	imgseg03_16633_07jul16.gif	GIF	Start time = 19:05:16 End time = 19:35:16

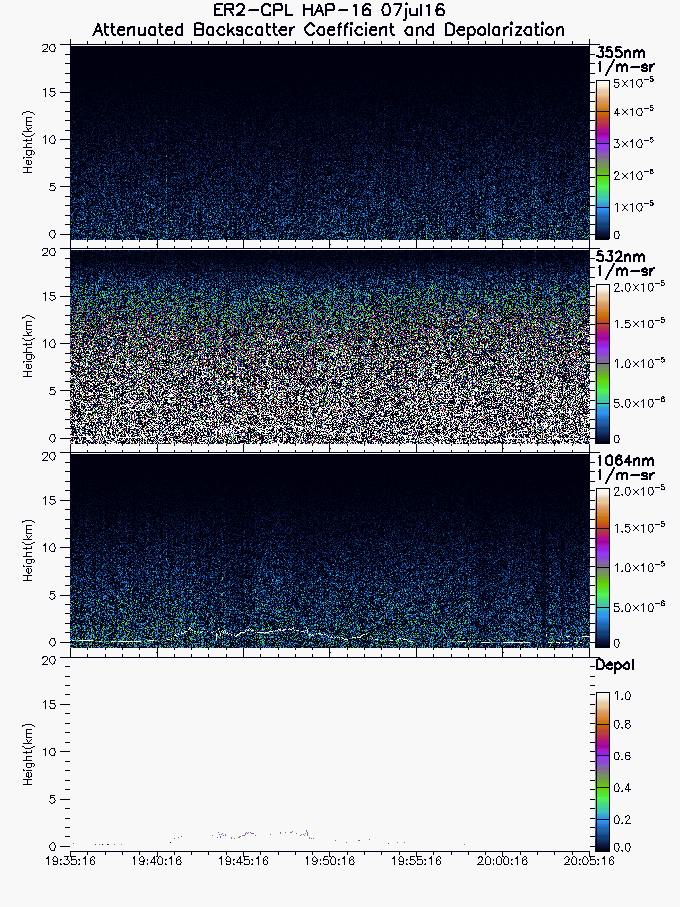

	imgseg04_16633_07jul16.gif	GIF	Start time = 19:35:16 End time = 20:05:16

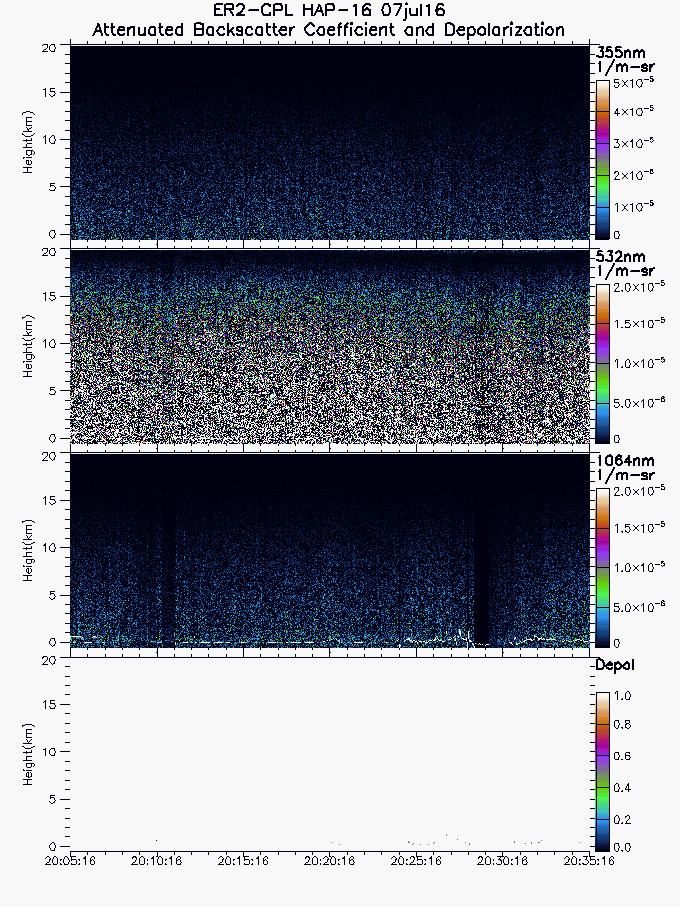

	imgseg05_16633_07jul16.gif	GIF	Start time = 20:05:16 End time = 20:35:16

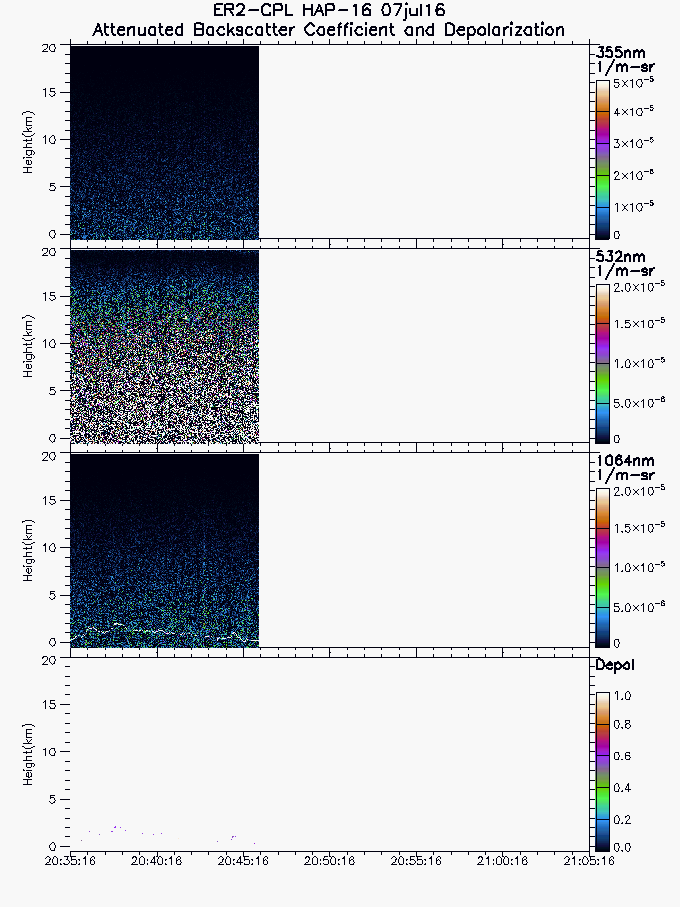

	imgseg06_16633_07jul16.gif	GIF	Start time = 20:35:16 End time = 20:46:11
The following images and files are for the entire flight:
	layers_16633_07jul16.txt	TEXT	Layer boundary file showing type and location of all atmospheric layers sensed
	cipbl_16633_07jul16.txt	TEXT	Quick optical file showing optical depth and extinction-to-backscatter ratio calculations for a pre-defined cirrus zone and the cloud-cleared Planetary Boundary Layer for 355, 532, and 1064 nm.
	CIPBL_readme.txt	TEXT	Text file describing how to interpret and use the quick optical file.
	ciod_16633_07jul16.gif	GIF	Optical Depth Plots (Cirrus), from the Quick Optical File
	pblod_16633_07jul16.gif	GIF	Optical Depth Plots (PBL), from the Quick Optical File

Large Binary Output Files
Filename	Type	Descriptions and Comments
NRB_16633_07jul16.xdr	XDR	NRB Binary Output containing Lidar profiles after instrument corrections but before calibrated backscatter
OP_16633_07jul16.xdr	XDR	Final Optical Binary Output containing optical properties of every layer sensed, including optical depth, extinction-to-backscatter ratio, and extinction profile for 355, 532, and 1064 nm.
cal_16633_07jul16.final	TEXT	Request calibration file. This file contains the instrument calibration coefficients used to generate attenuated backscatter data from the NRB binary data.
*Note* Binary output files are large (most files are 500MB). *Note* If you want the binary output files above, please click on the filename to download.

---
