Data products for August 6, 2017

---

NOTE: Data products for this day are averaged to 1 second (200 m horizontal).

Support Data
View	Filename	Type	Descriptions and Comments

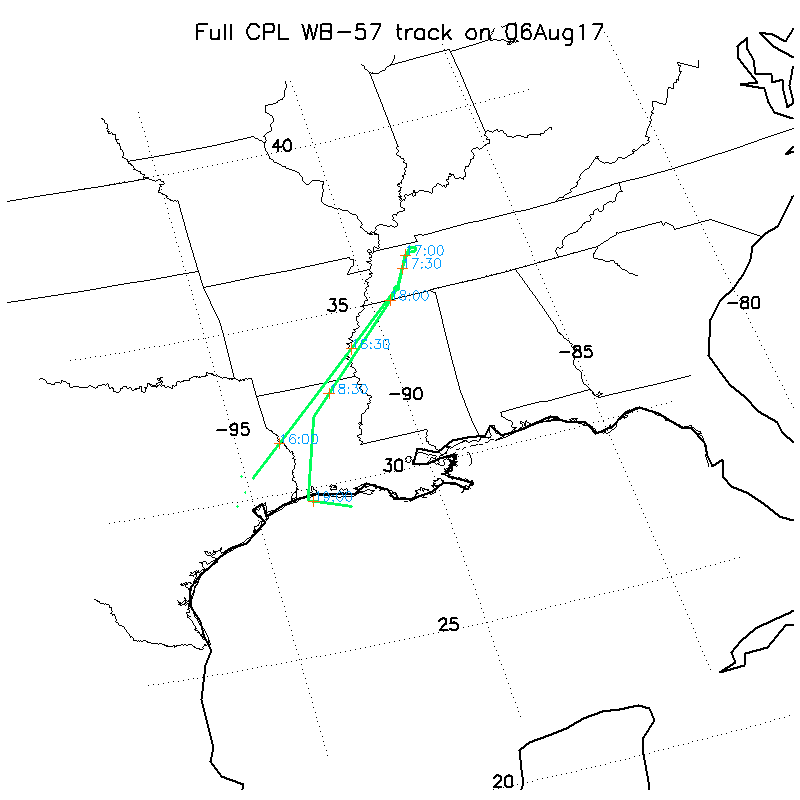

	map_17704_06aug17.gif	GIF	Map showing flight track for this day
Images and Data
View	Filename	Type	Descriptions and Comments

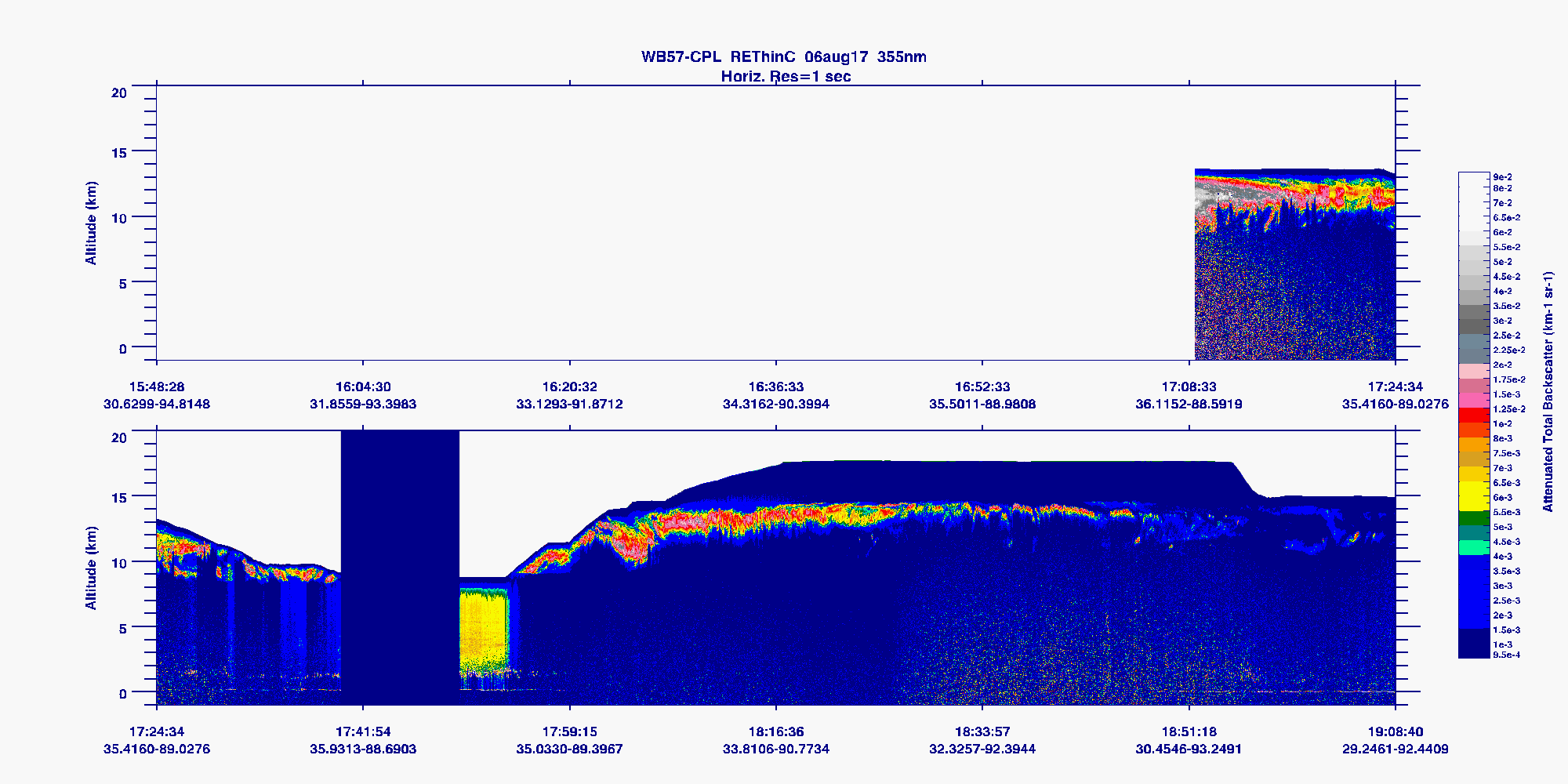

	imgsum_17704_06aug17_355.gif	GIF	Flight summary image for 355 nm

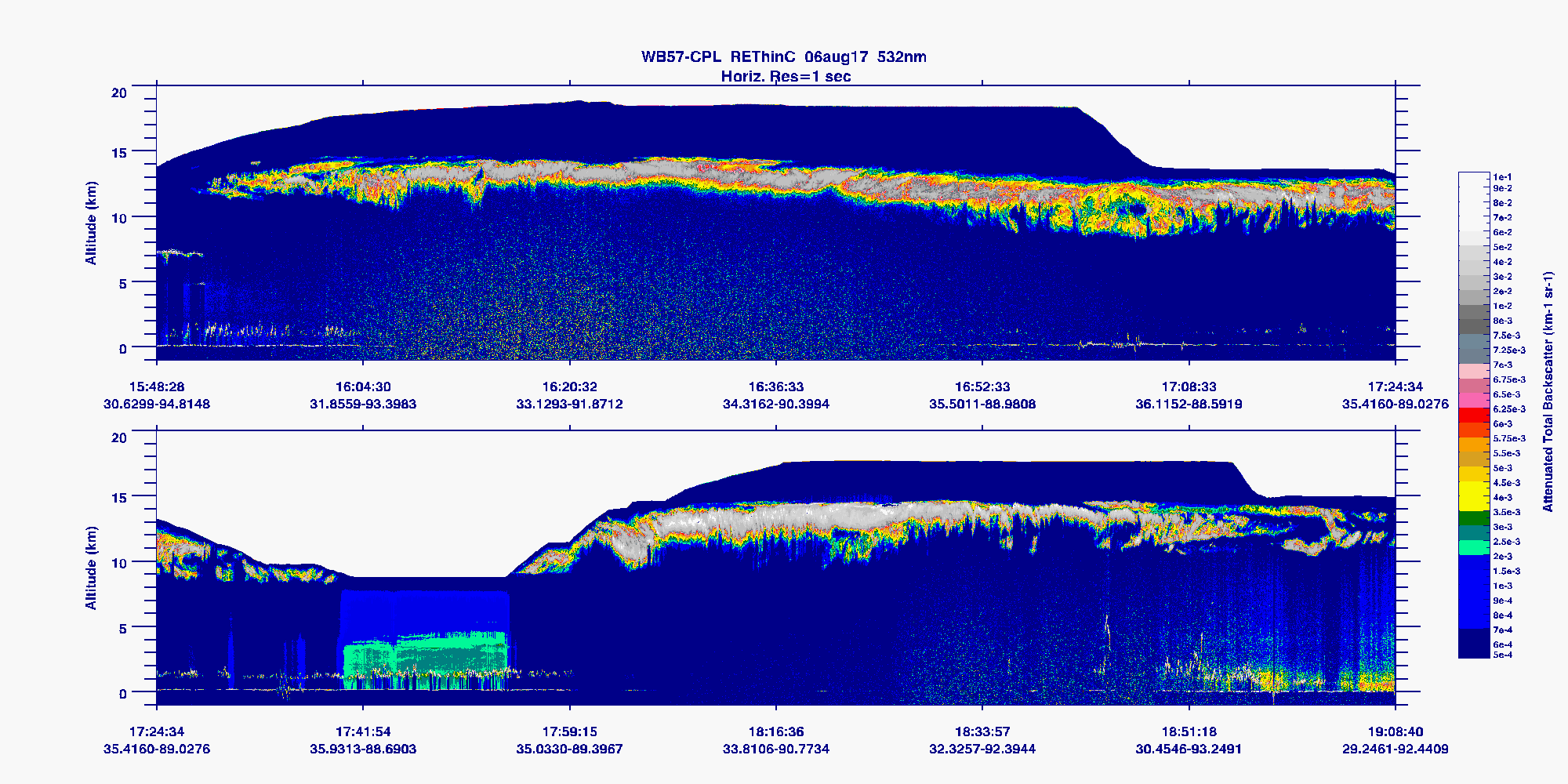

	imgsum_17704_06aug17_532.gif	GIF	Flight summary image for 532 nm

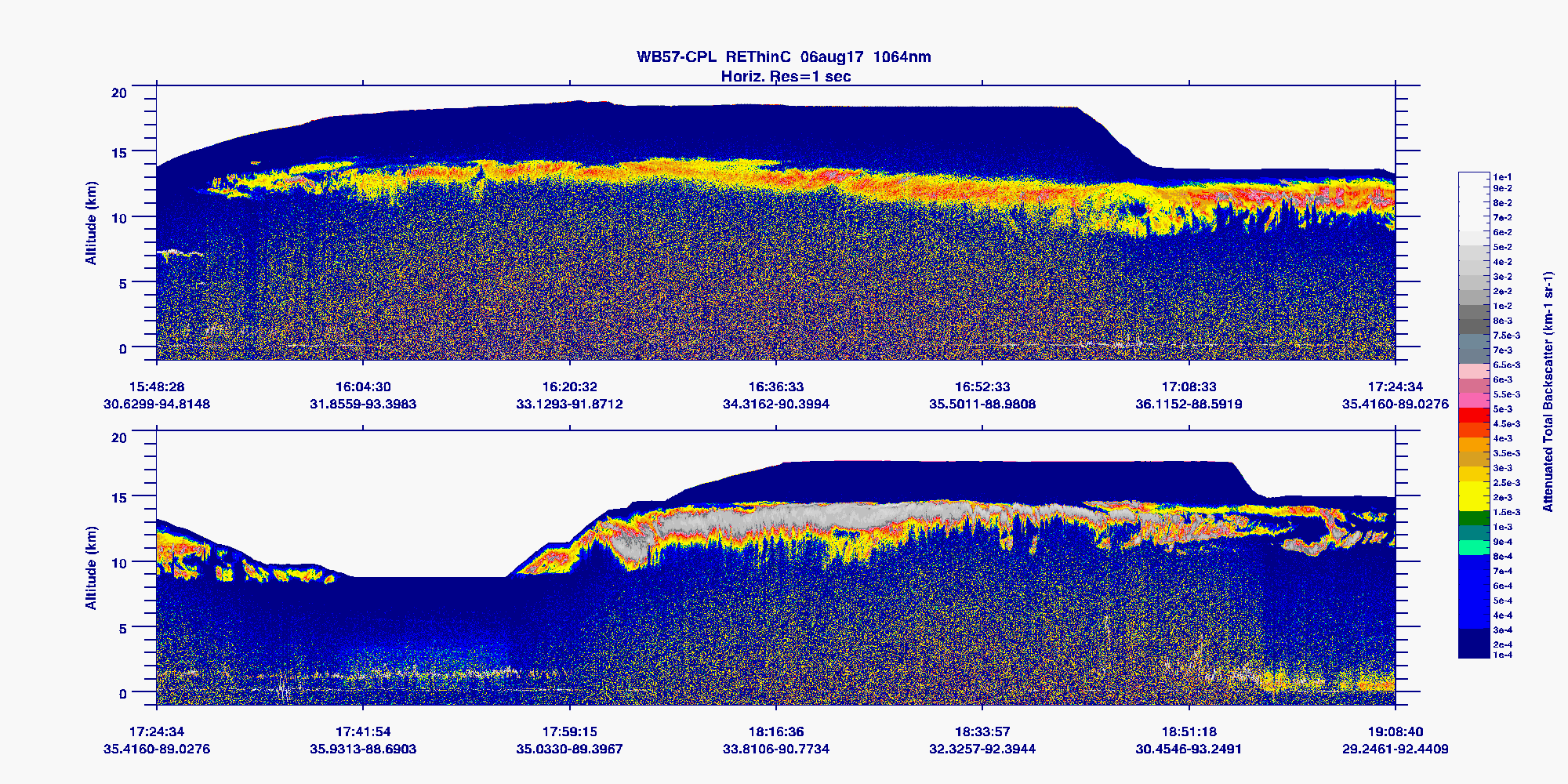

	imgsum_17704_06aug17_1064.gif	GIF	Flight summary image for 1064 nm

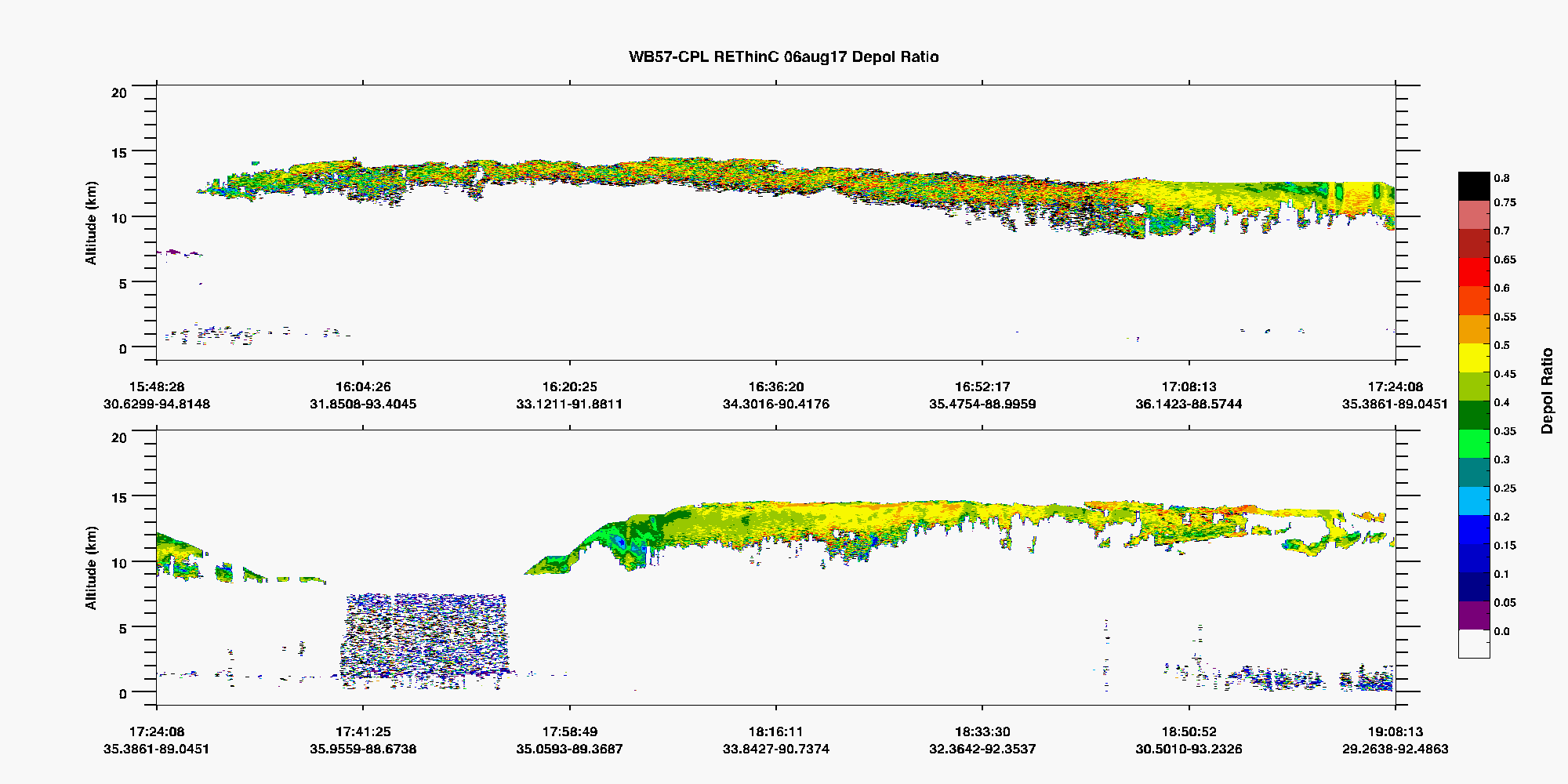

	imgsum_17704_06aug17_depol.gif	GIF	Flight summary image of depolarization ratio
	imgsum_17704_06aug17_ftype.gif	GIF	Flight summary image of layer type

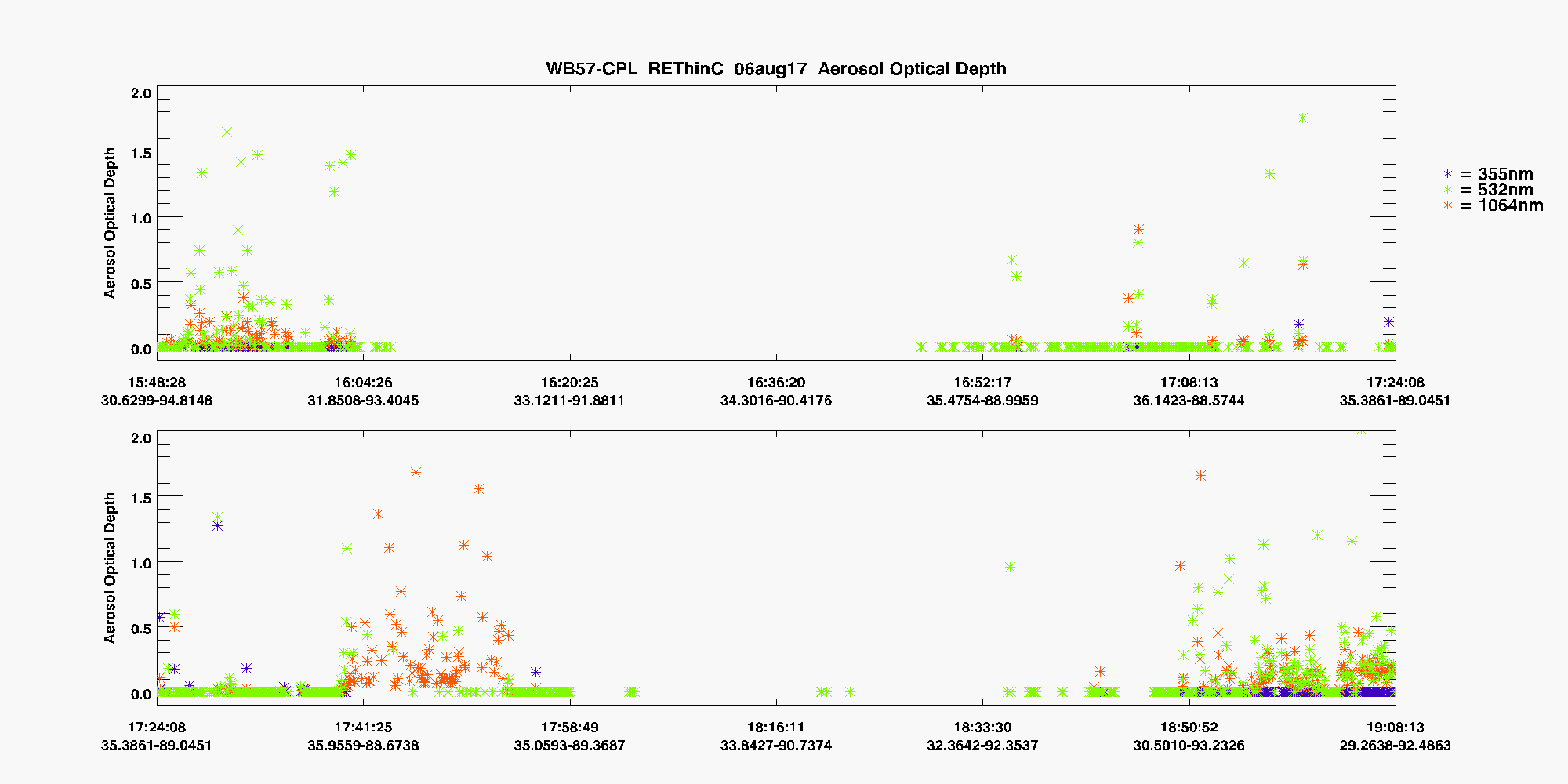

	imgsum_17704_06aug17_aod.gif	GIF	Flight summary image of aerosol optical depth

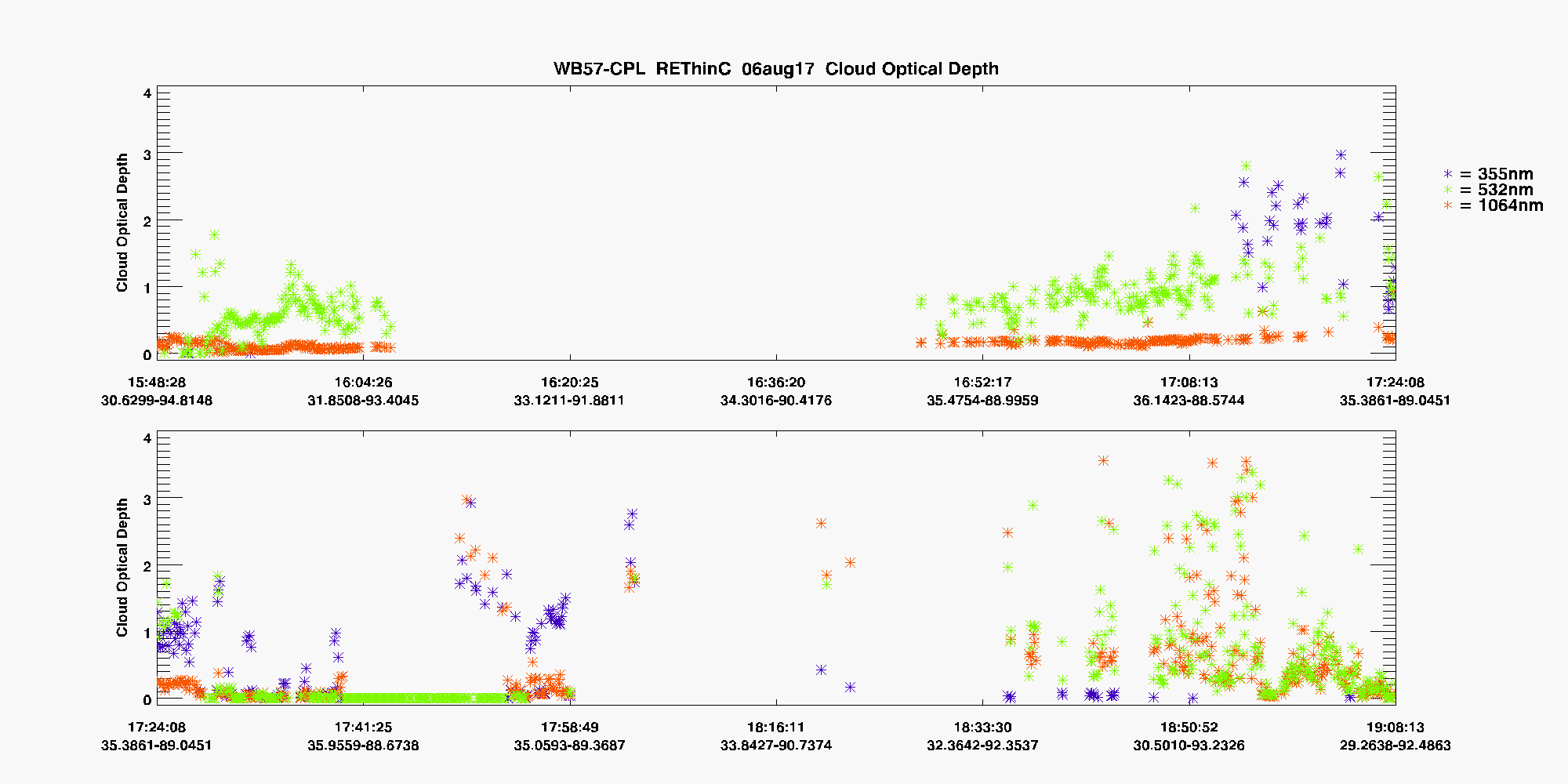

	imgsum_17704_06aug17_cod.gif	GIF	Flight summary image of cloud optical depth

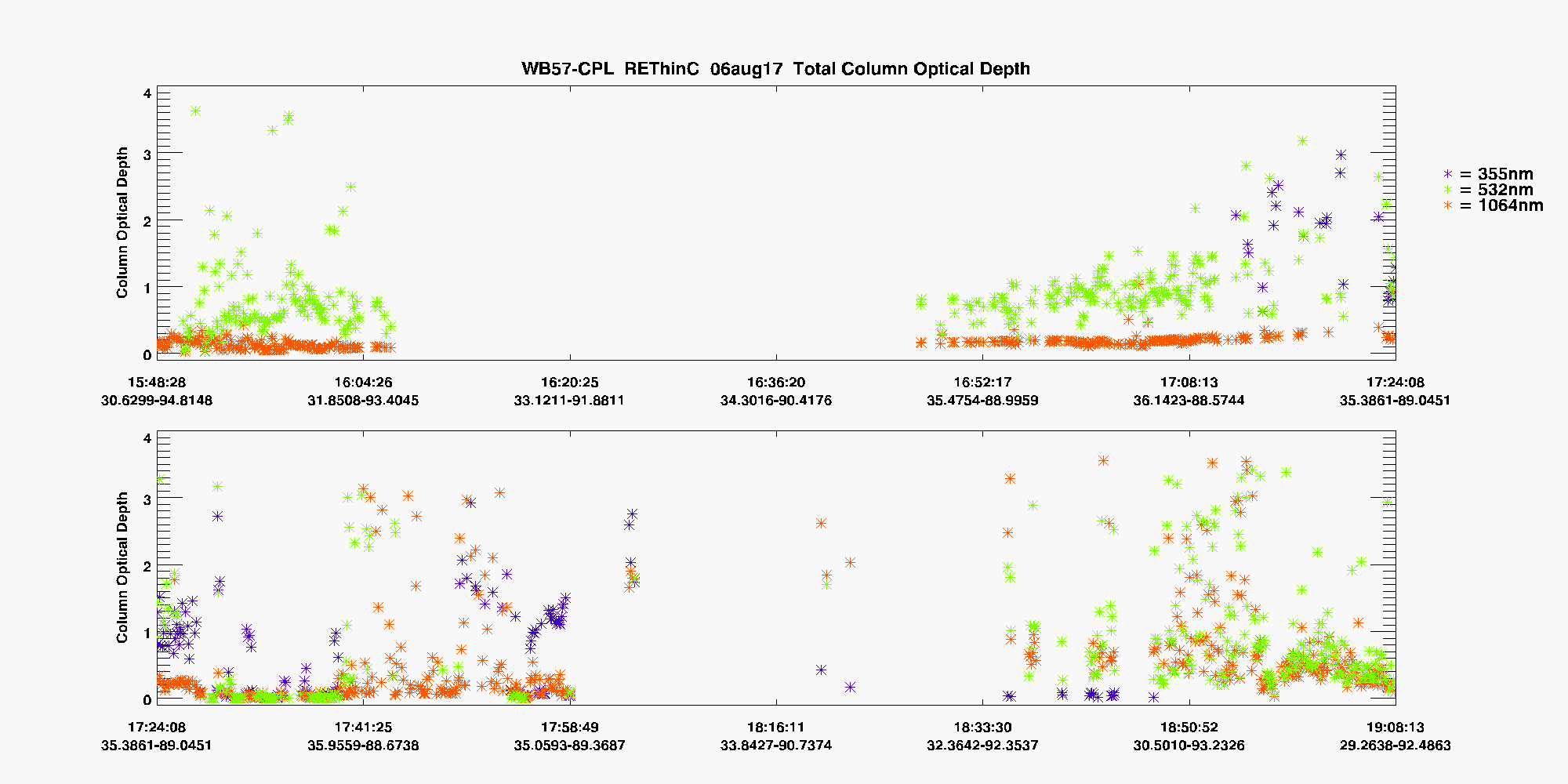

	imgsum_17704_06aug17_colOD.gif	GIF	Flight summary image of column (total) optical depth

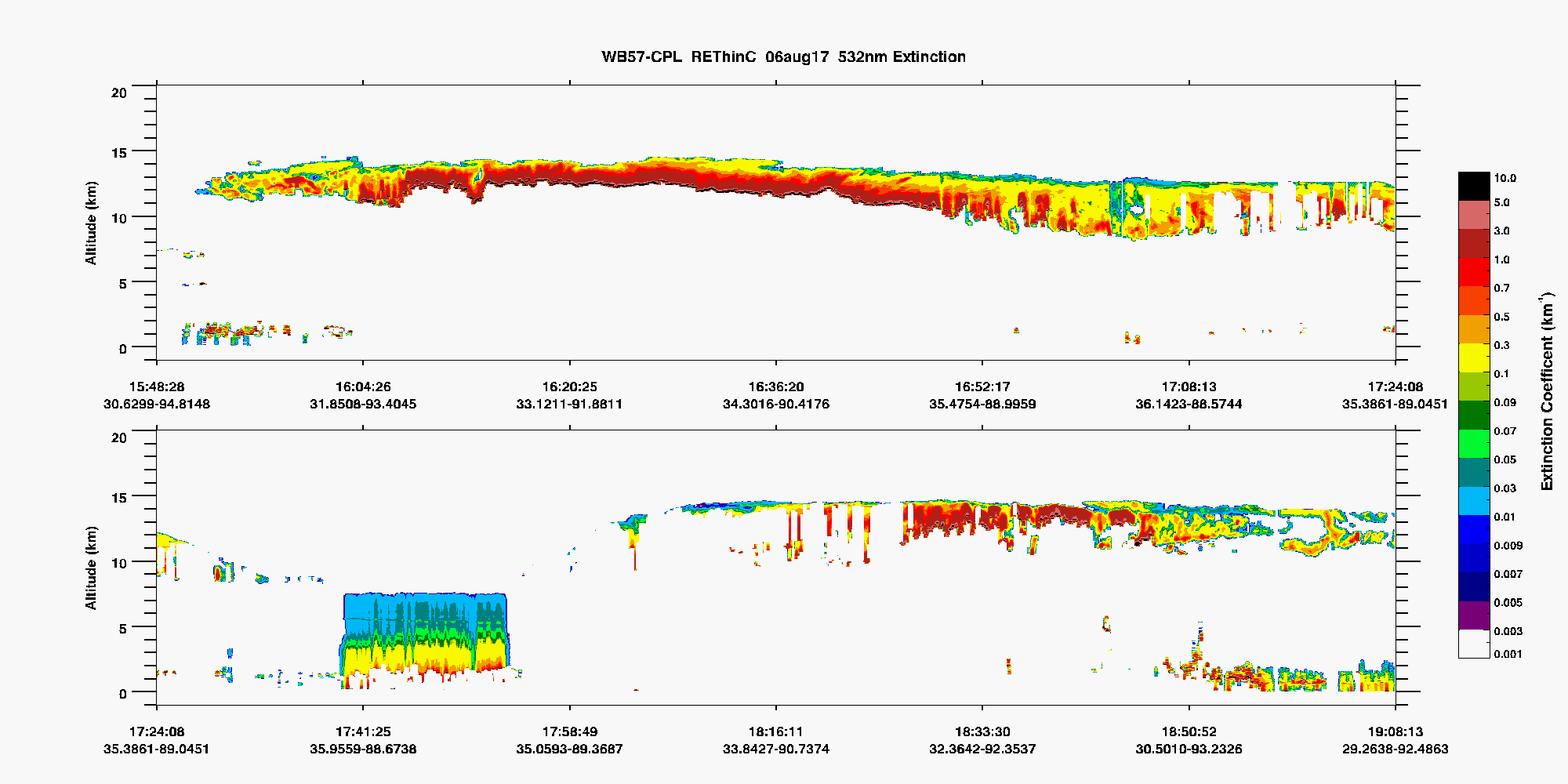

	imgsum_17704_06aug17_ext.gif	GIF	Flight summary image of extinction

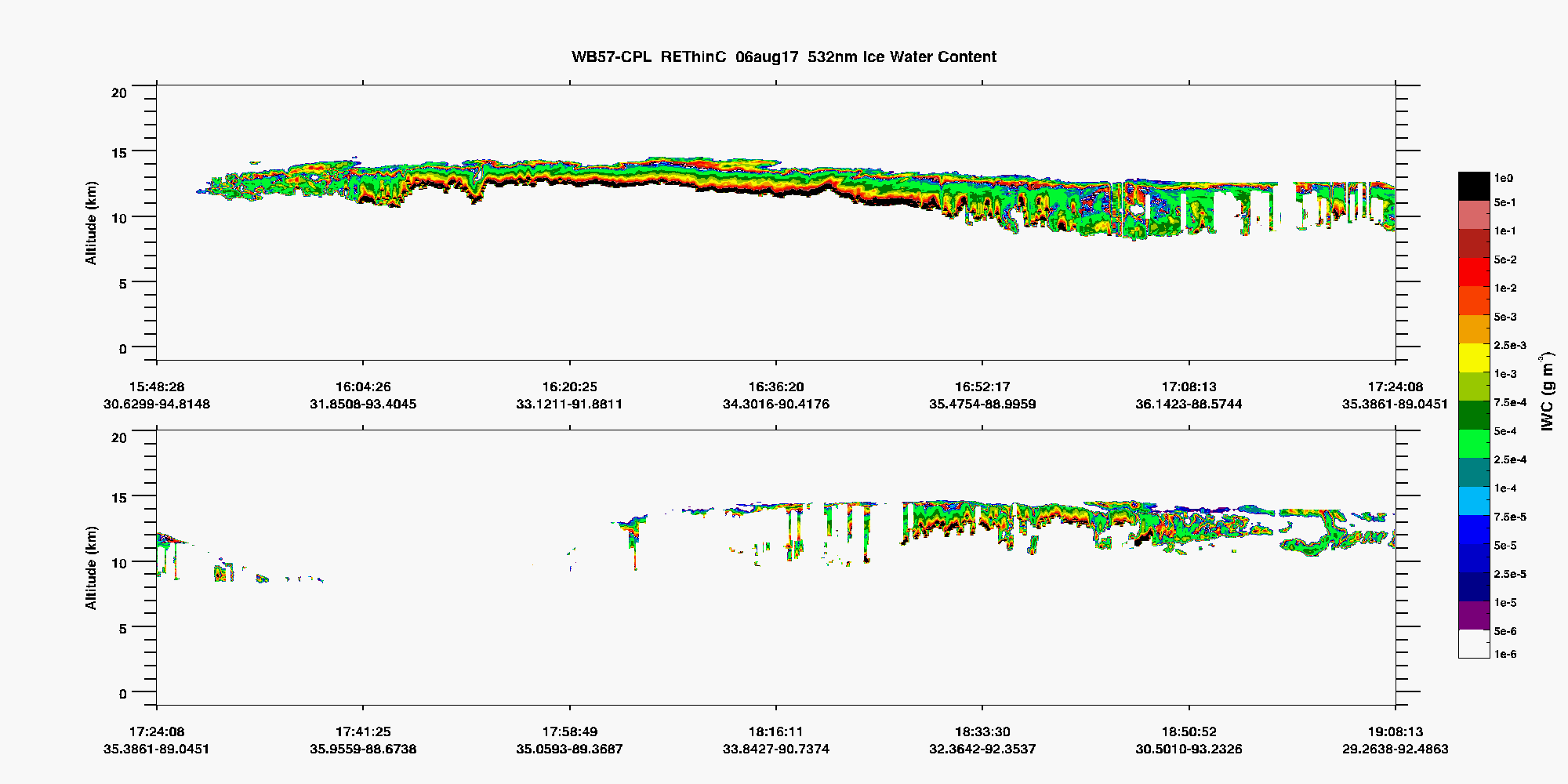

	imgsum_17704_06aug17_iwc.gif	GIF	Flight summary image of ice water content
	layers_17704_06aug17.txt	TEXT	Layer boundary file showing type and location of all atmospheric layers sensed
The following are 30 minute images showing 355, 532, and 1064 backscatter signals plus depolarizaton ratio for 1064:

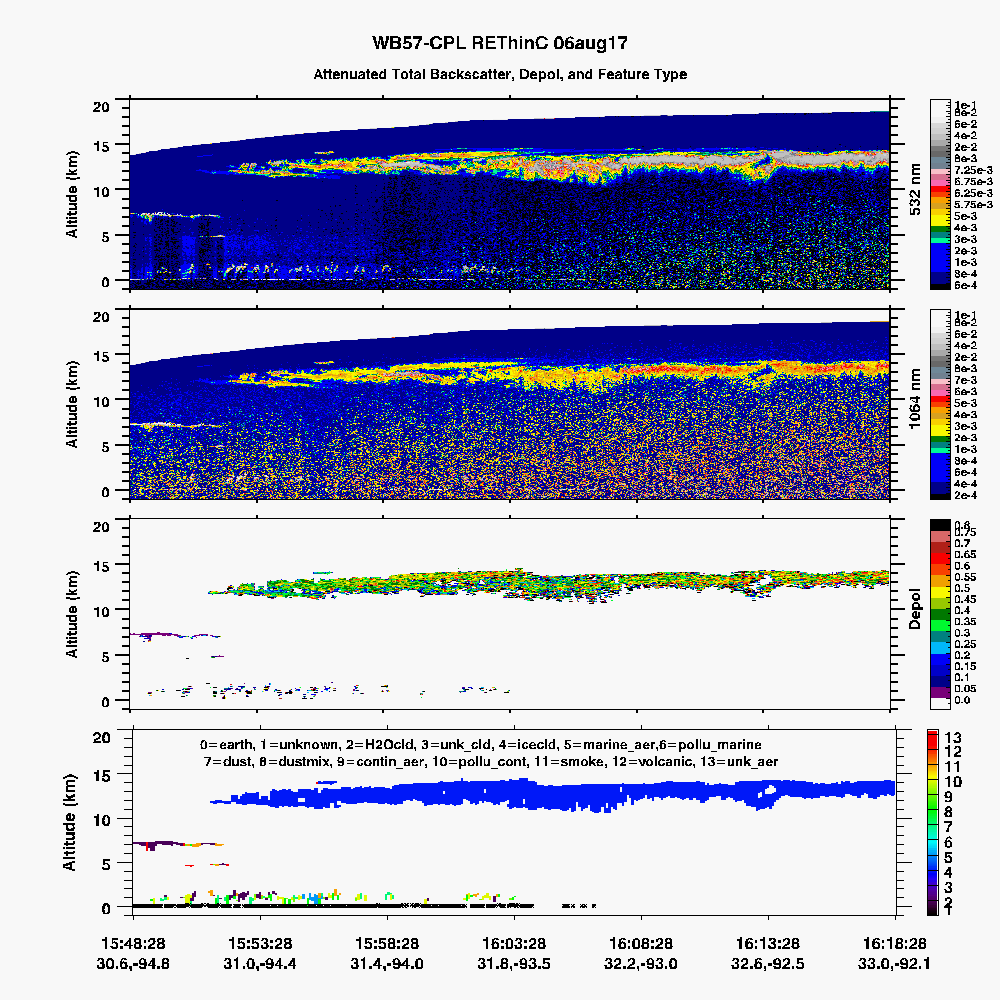

	imgseg01_17704_06aug17.gif	GIF	Start time = 15:48:28 End time = 16:18:28

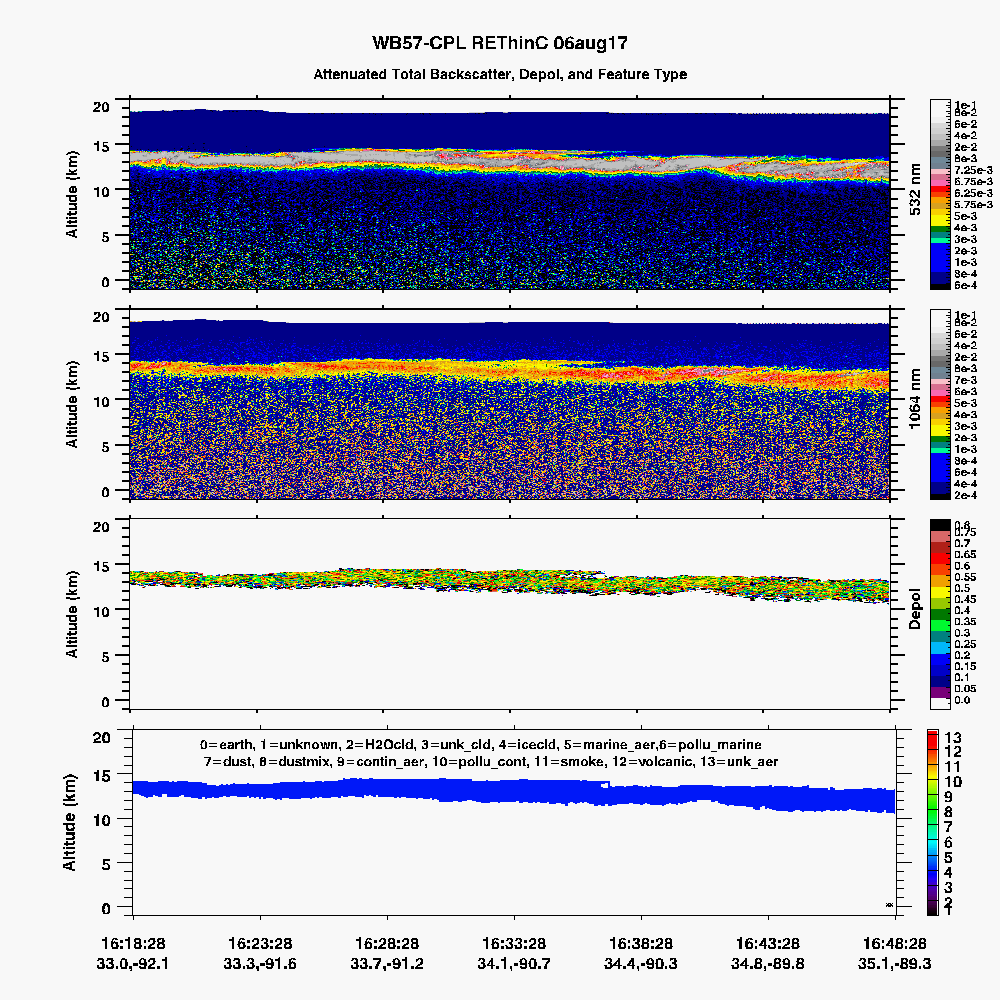

	imgseg02_17704_06aug17.gif	GIF	Start time = 16:18:28 End time = 16:48:28

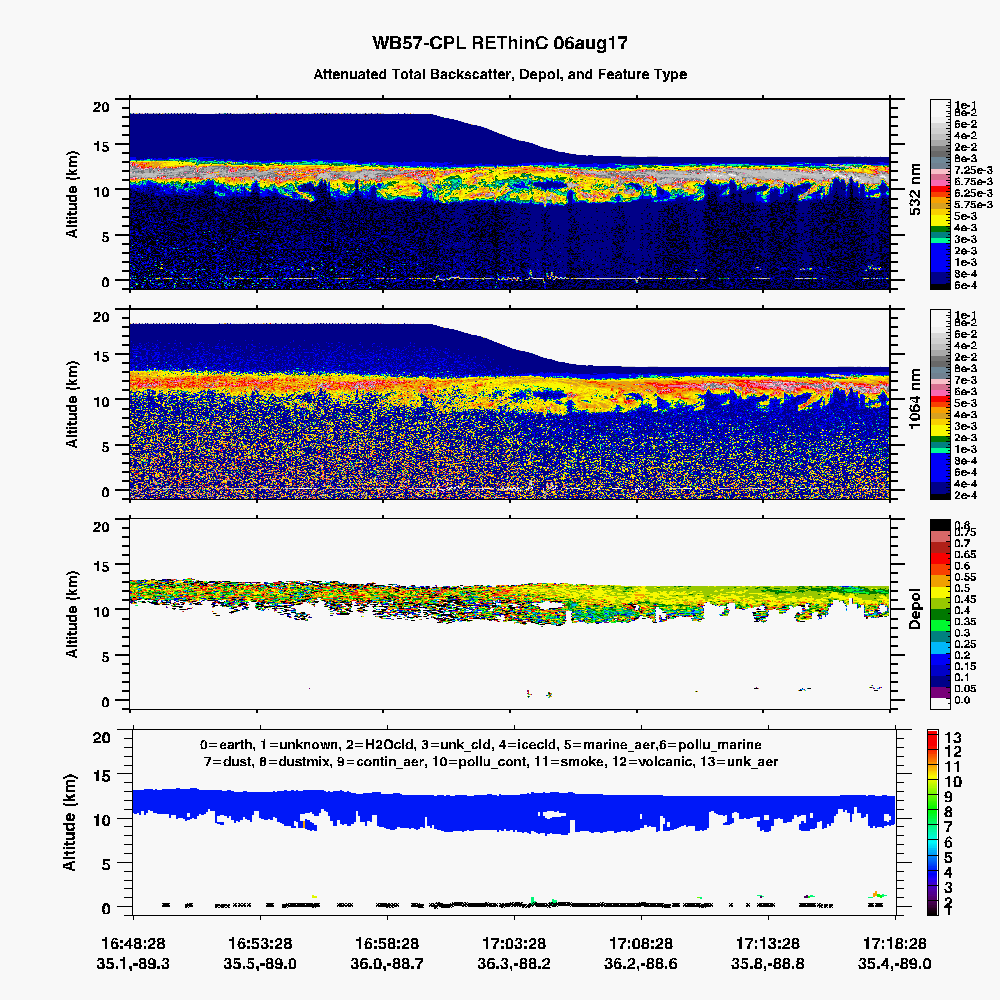

	imgseg03_17704_06aug17.gif	GIF	Start time = 16:48:28 End time = 17:18:28

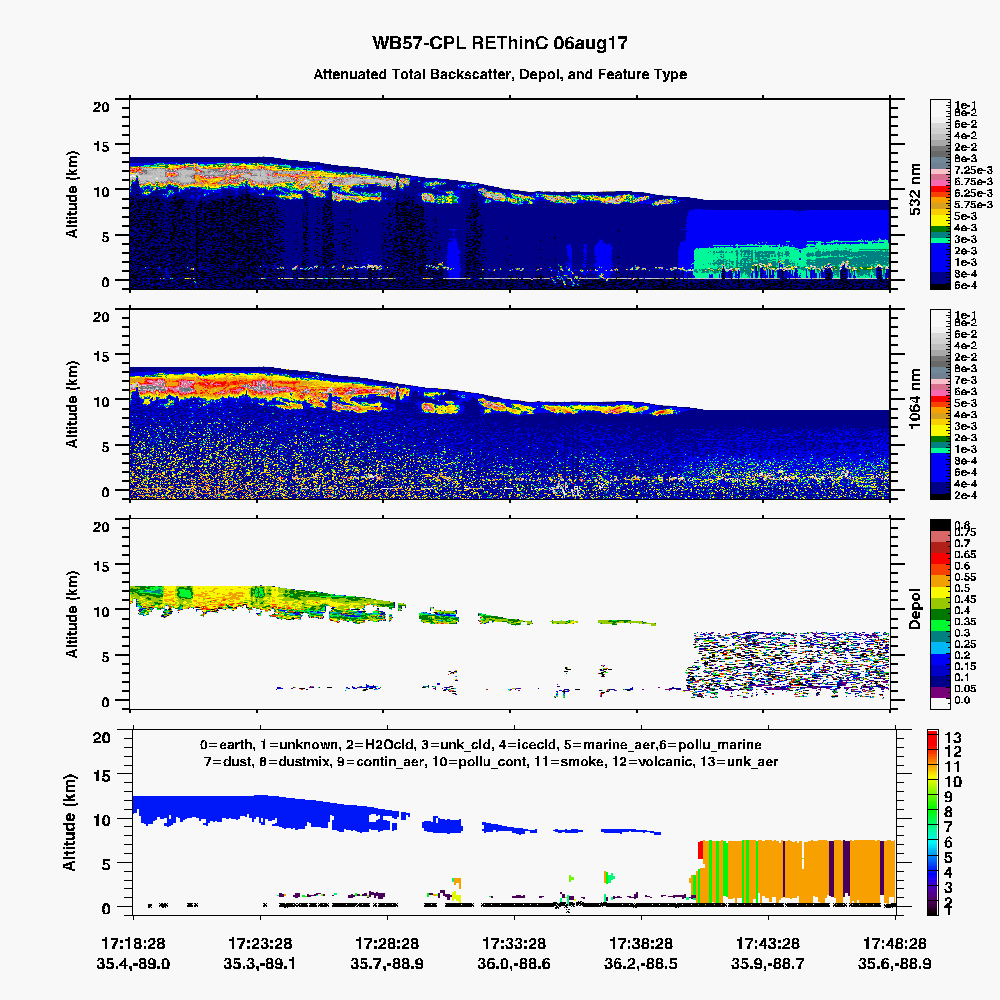

	imgseg04_17704_06aug17.gif	GIF	Start time = 17:18:28 End time = 17:48:28

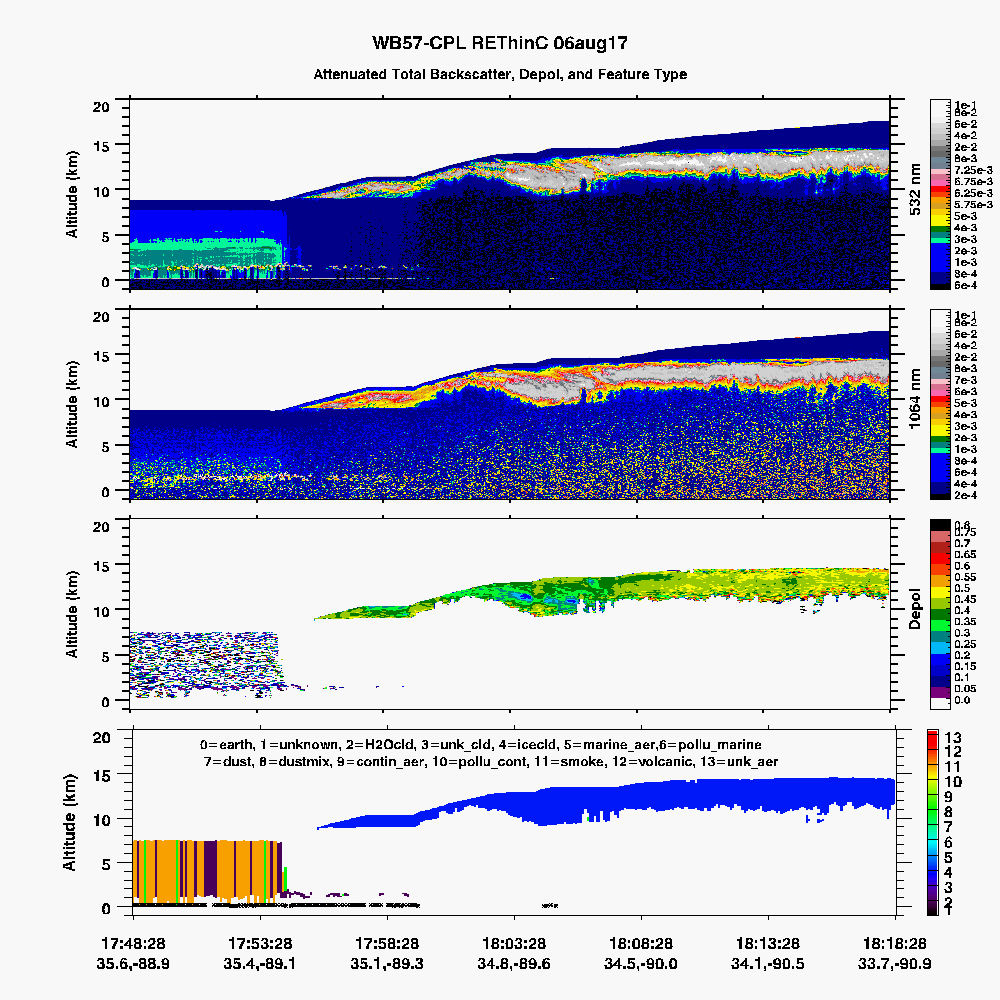

	imgseg05_17704_06aug17.gif	GIF	Start time = 17:48:28 End time = 18:18:28

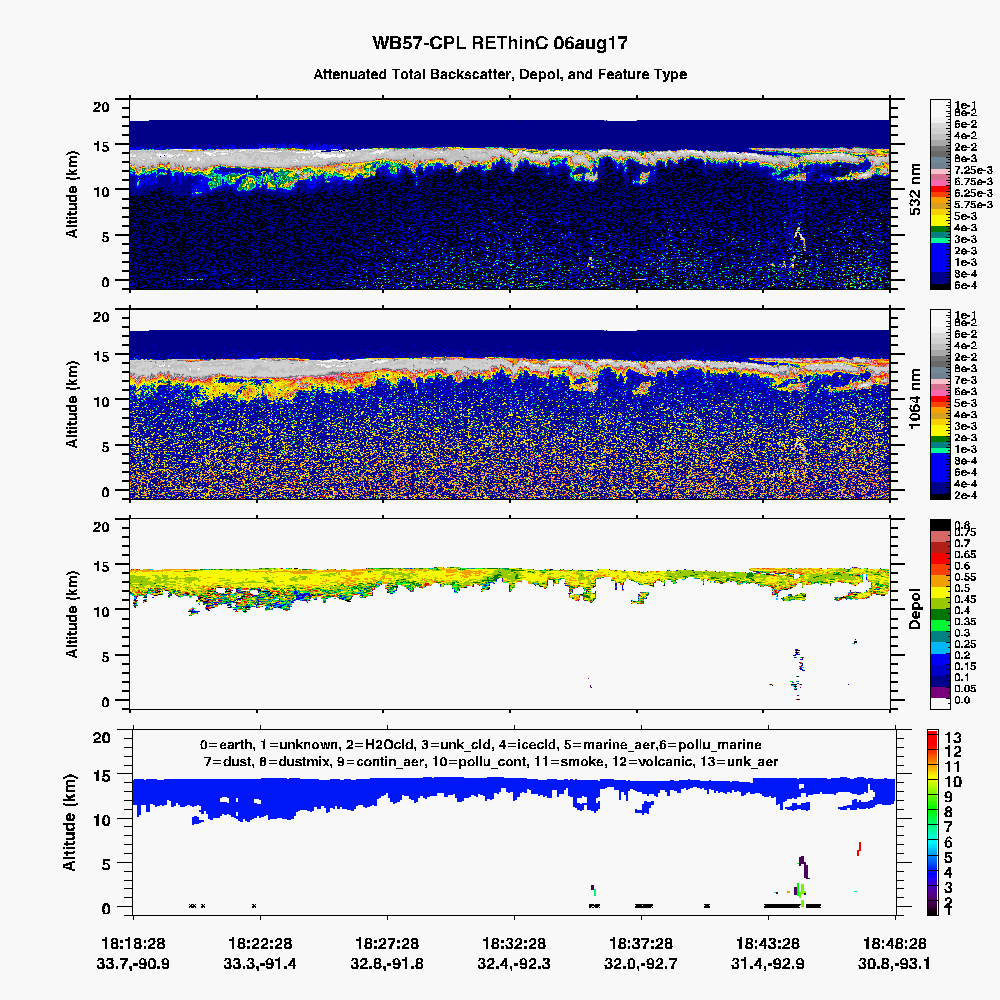

	imgseg06_17704_06aug17.gif	GIF	Start time = 18:18:28 End time = 18:48:28

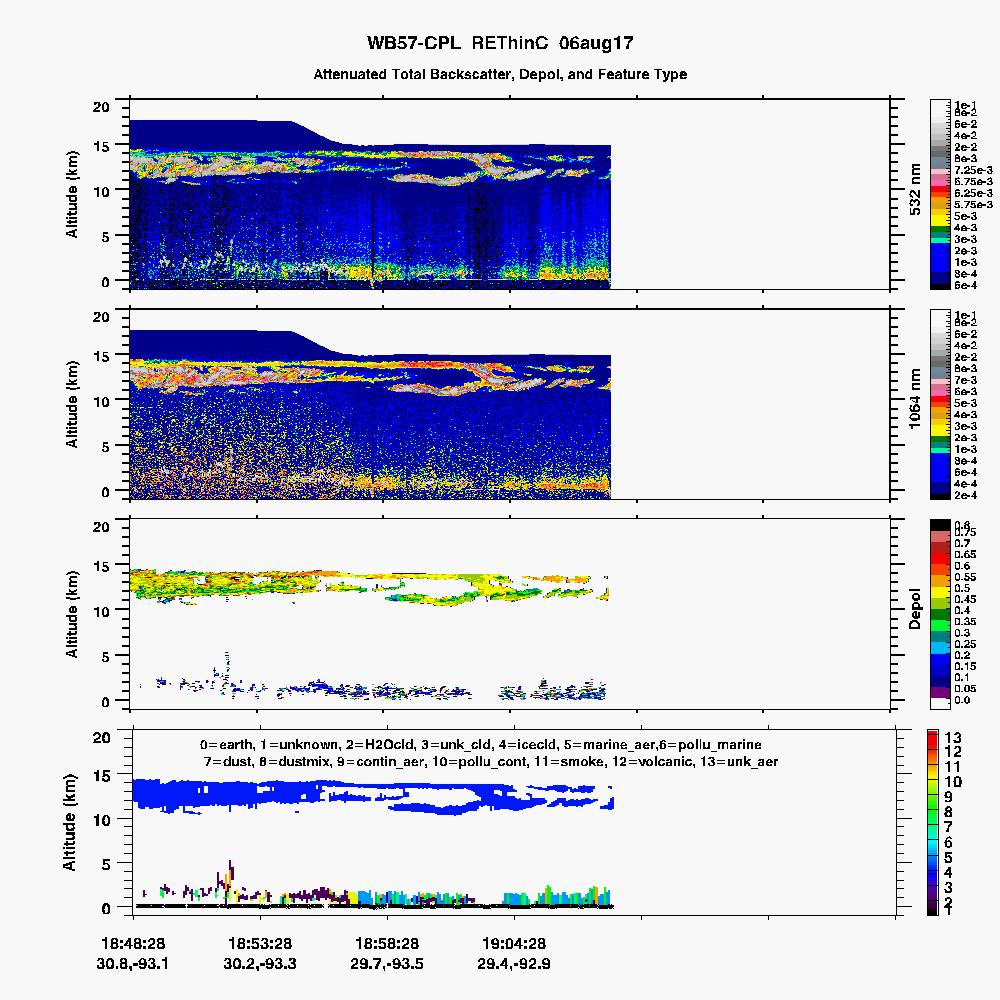

	imgseg07_17704_06aug17.gif	GIF	Start time = 18:48:28 End time = 19:08:40
The following images are for the entire flight:

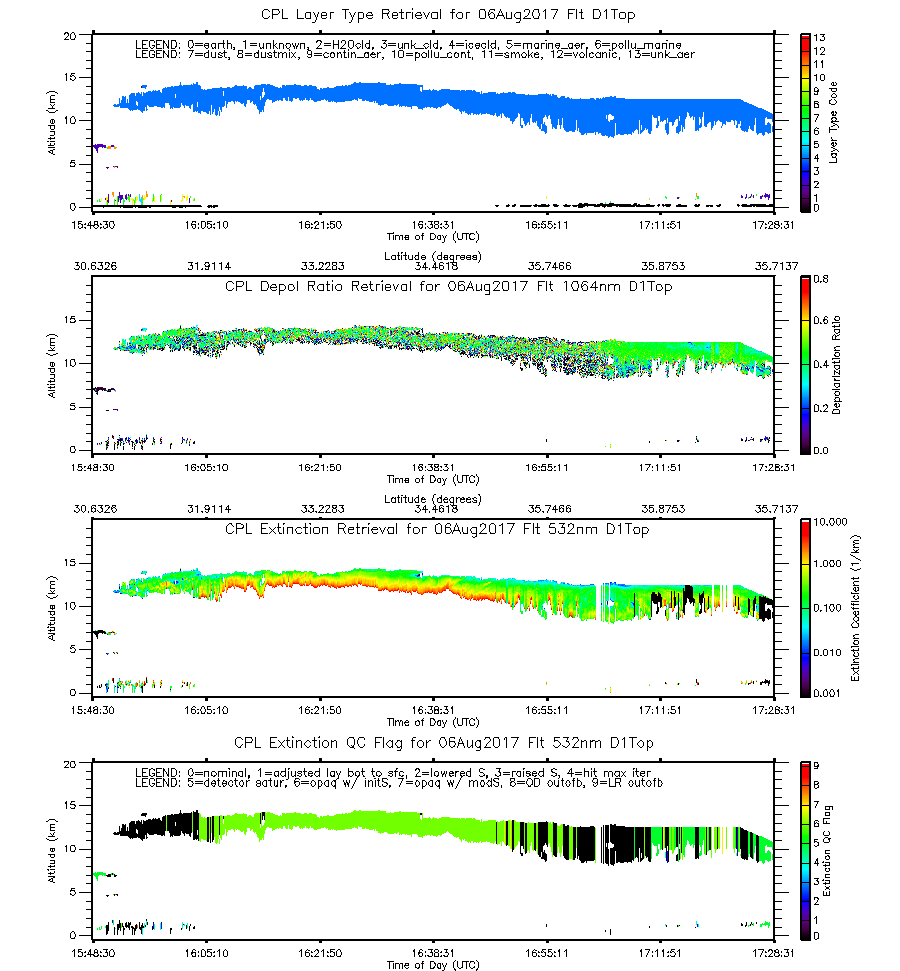

	CPL_L2_V1-02_01kmSum_17704_06aug17_D1Top.gif	GIF	Layer discrimination, depolarization ratio, extinction (at 532 nm), and extinction QC flag for first half of flight (corresponds to top panel of imgsum plot).

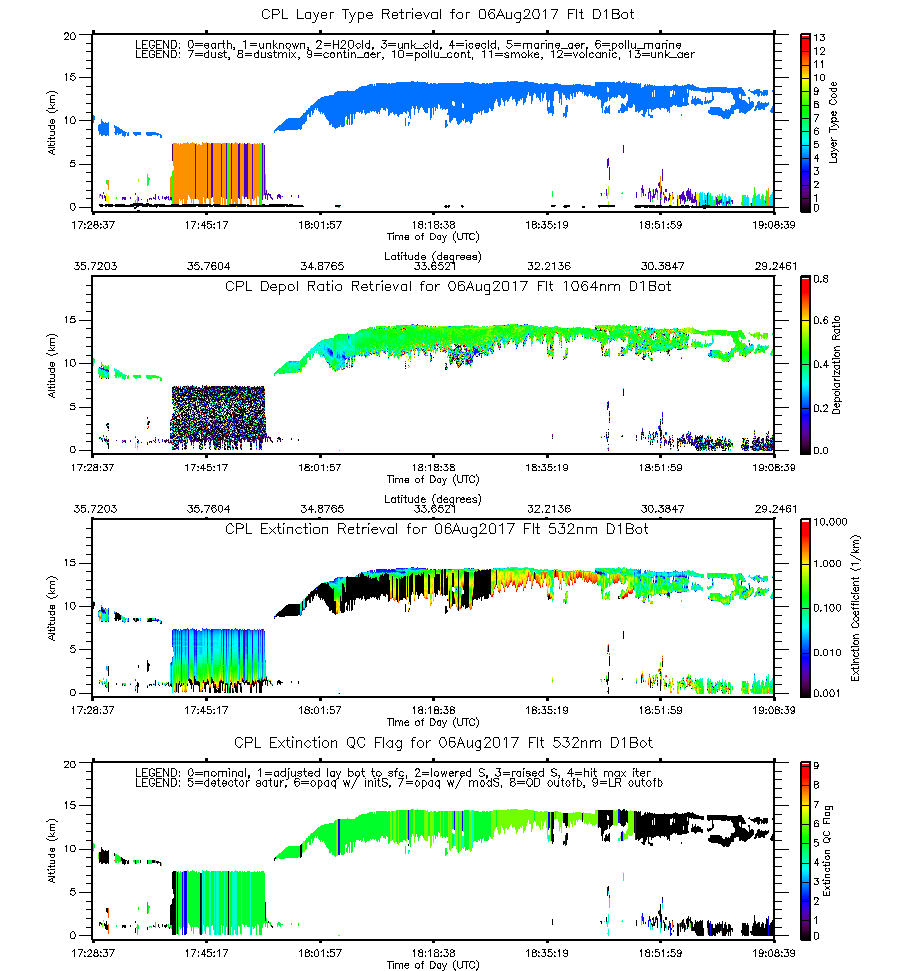

	CPL_L2_V1-02_01kmSum_17704_06aug17_D1Bot.gif	GIF	Layer discrimination, depolarization ratio, extinction (at 532 nm), and extinction QC flag for second half of flight (corresponds to bottom panel of imgsum plot).

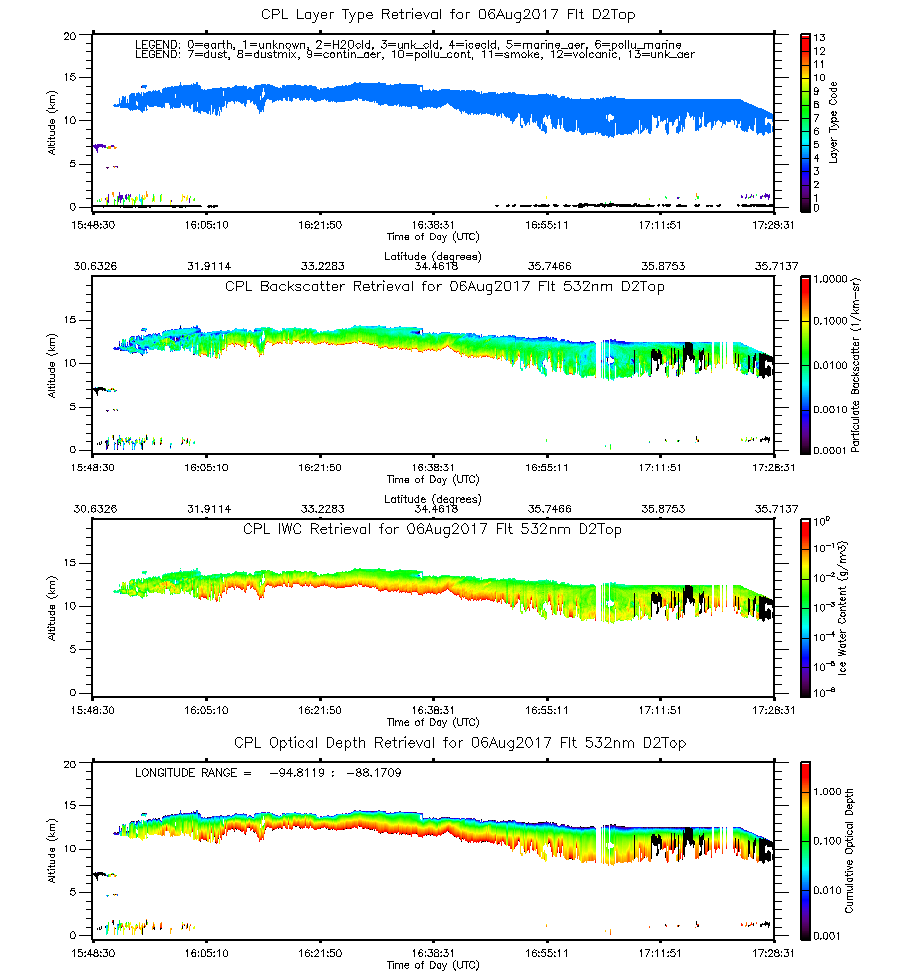

	CPL_L2_V1-02_01kmSum_17704_06aug17_D2Top.gif	GIF	Layer discrimination, particulate backscatter (at 532 nm), ice water content (at 532 nm), and cumulative optical depth (at 532 nm) for first half of flight (corresponds to top panel of imgsum plot).

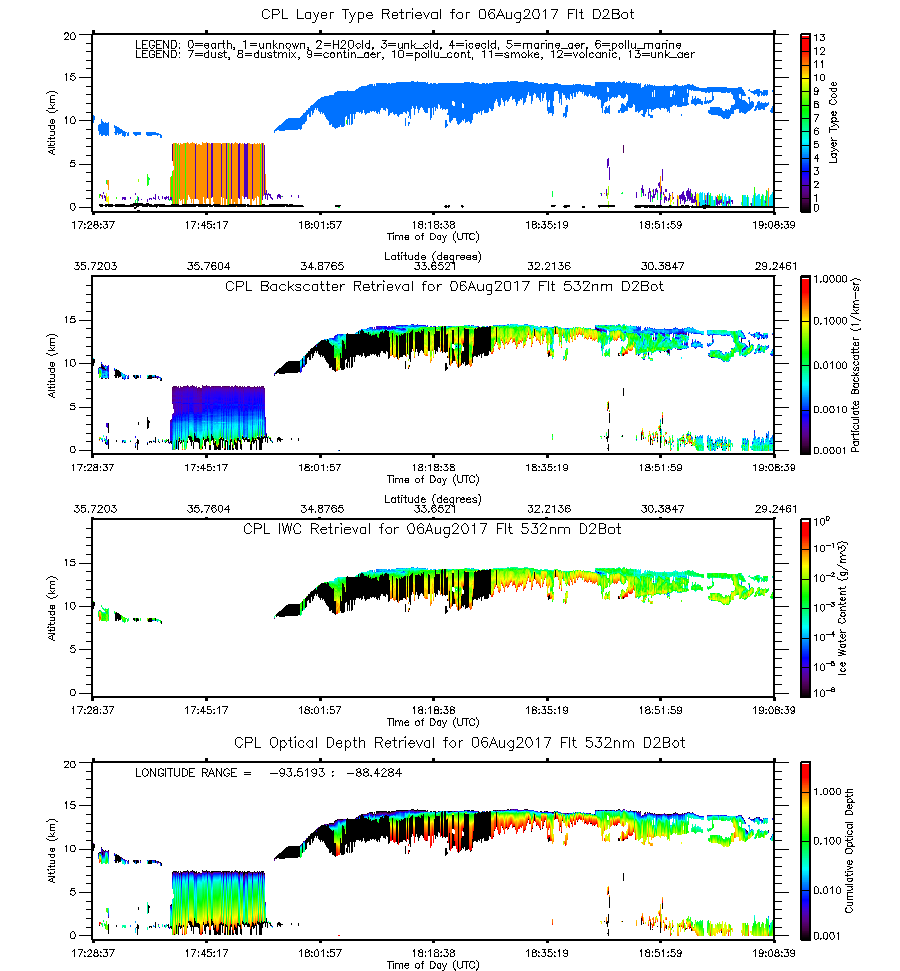

	CPL_L2_V1-02_01kmSum_17704_06aug17_D2Bot.gif	GIF	Layer discrimination, particulate backscatter (at 532 nm), ice water content (at 532 nm), and cumulative optical depth (at 532 nm) for second half of flight (corresponds to bottom panel of imgsum plot).
	layers_17704_06aug17.txt	TEXT	Layer boundary file showing type and location of all atmospheric layers sensed

Large Binary Output Files
Filename	Type	Descriptions and Comments
CPL_ATB_L1B_17704_06aug17.hdf5	HDF5	Final, calibrated attenuated backscatter profiles for 355, 532, and 1064 nm (1 second, 200 m resolution).
CPL_L2_V1-02_01kmLay_17704_06aug17.hdf5	HDF5	Final, calibrated output of layer identification for 355, 532, and 1064 nm (5 second, 1 km resolution).
CPL_L2_V1-02_01kmPro_17704_06aug17.hdf5	HDF5	Final, calibrated output of profiles for 355, 532, and 1064 nm (5 second, 1 km resolution).
*Note* Binary output files are large (most files are 500MB). *Note* If you want the binary output files above, please click on the filename to download.

---
