Data products for August 31, 2000
Support Data
View
Filename
Type
Descriptions and Comments
Calibration File map_00154_31Aug00.gif
GIF
 Map showing flight track for this day
Images and Data
View
Filename
Type
Descriptions and Comments

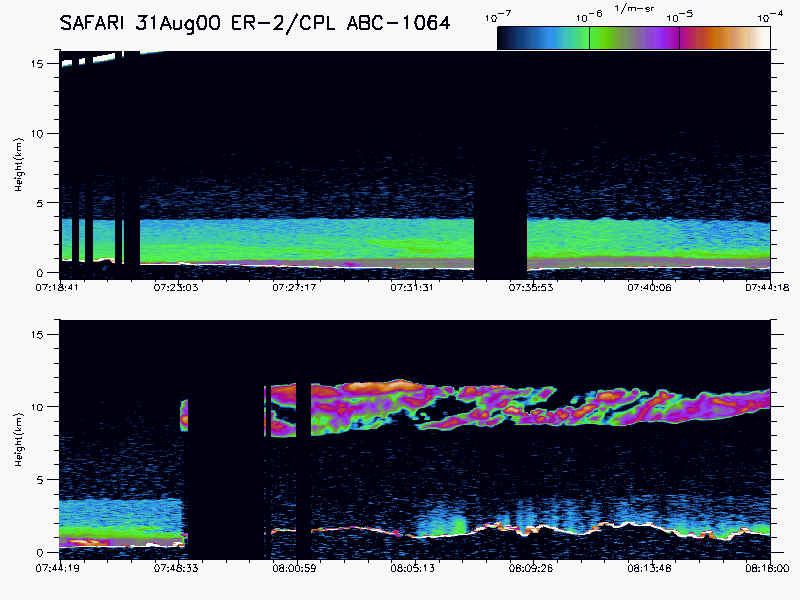

Flight Summary Image imgsum_00154_31Aug00.gif
GIF
 Flight summary image showing whole flight in one wavelength
The following are 30 minute images showing 355, 532, and 1064 backscatter signals plus depolarizaton ratio for 1064:

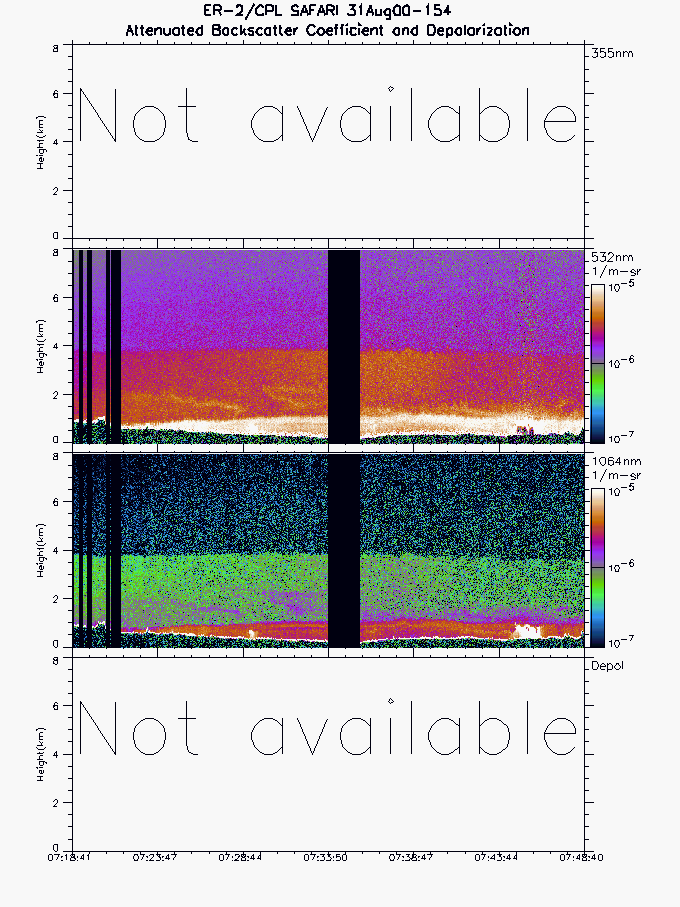

Image Segment 1 imgseg01_00154_31Aug00.gif
GIF
 Start time = 07:18:41 End time = 07:48:40

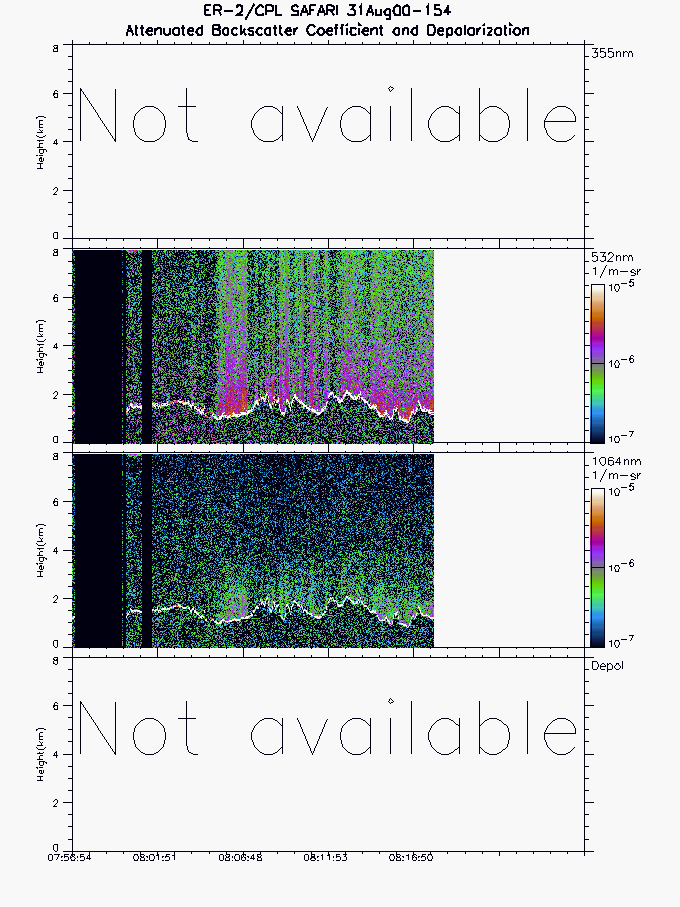

Image Segment 2 imgseg02_00154_31Aug00.gif
GIF
 Start time = 07:56:54 End time = 08:18:00
The following images and files are for the entire flight:
Layer Boundary File layers_00154_31Aug00.txt
TEXT
 Layer boundary file showing type and location of all atmospheric layers sensed
Quick Optical File CIPBL_00154_31Aug00.txt
TEXT
 Quick optical file showing optical depth and extinction-to-backscatter ratio calculations for a pre-defined cirrus zone and the cloud-cleared Planetary Boundary Layer for 355, 532, and 1064 nm.
ReadMe.txt CIPBL_readme.txt
TEXT
 Text file describing how to interpret and use the quick optical file.

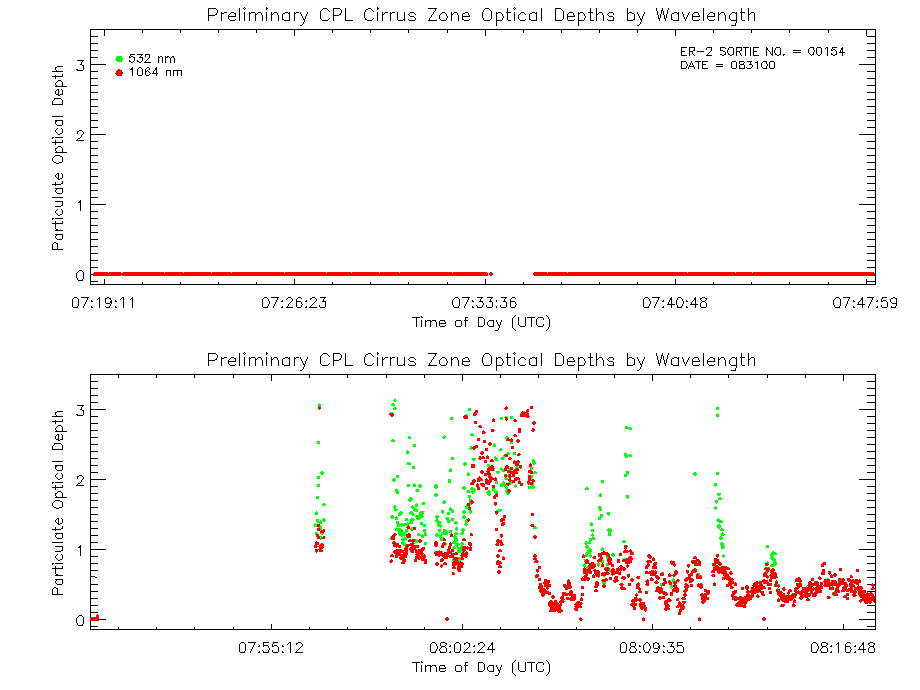

Optical Depth Plots (Cirrus) CIOD_00154_31Aug00.gif
GIF
 Optical Depth Plots (Cirrus), from the Quick Optical File
Optical Depth Plots (PBL) PBLOD_00154_31Aug00.gif
GIF

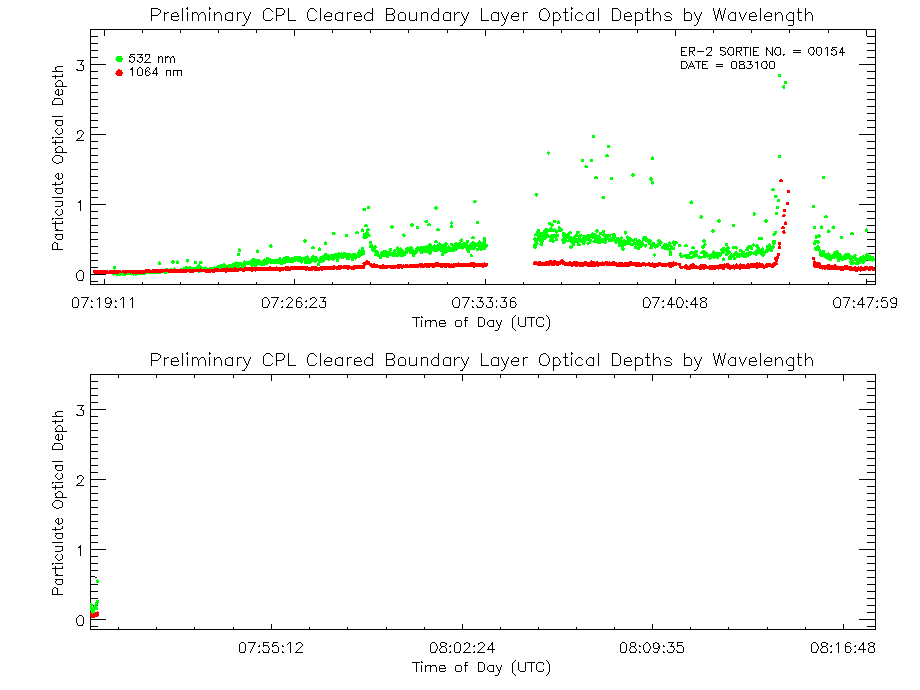

 Optical Depth Plots (PBL), from the Quick Optical File
The following are 30 minute images showing extinction and total optical depth:

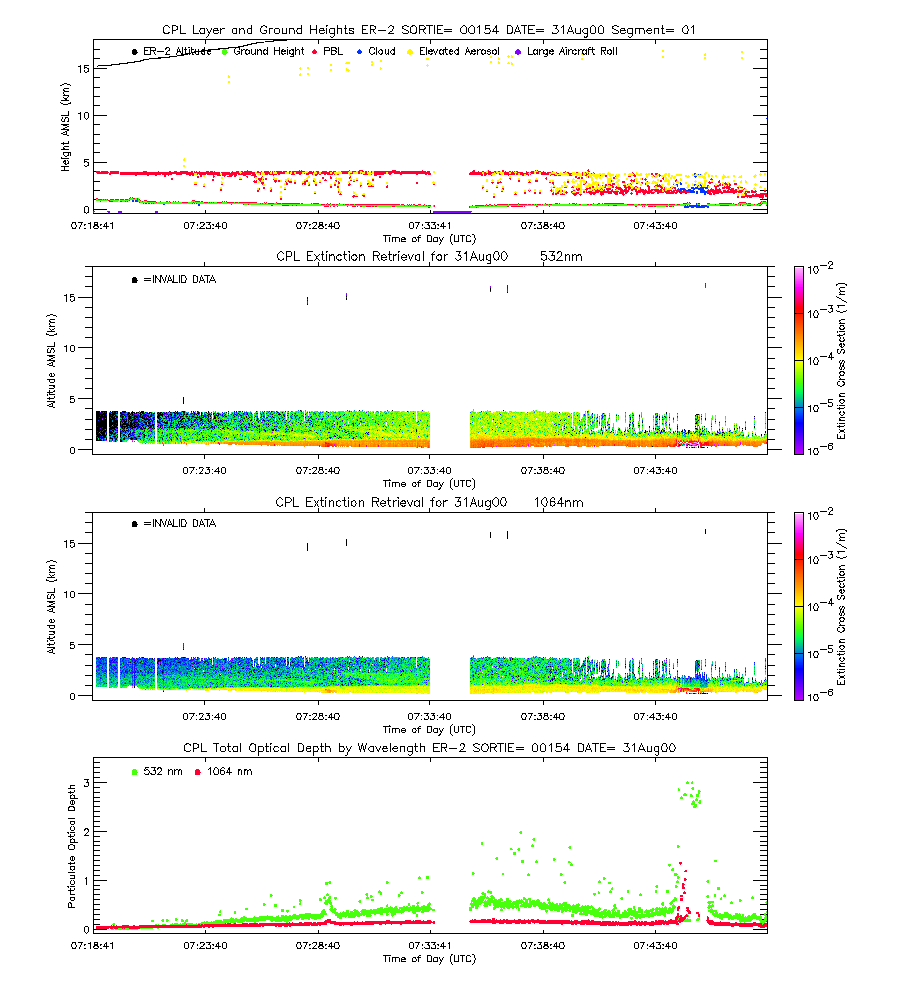

Extinction Segment Image EXTSEG01_00154_31Aug00.gif
GIF
 Start time = 07:18:41 End time = 07:48:40

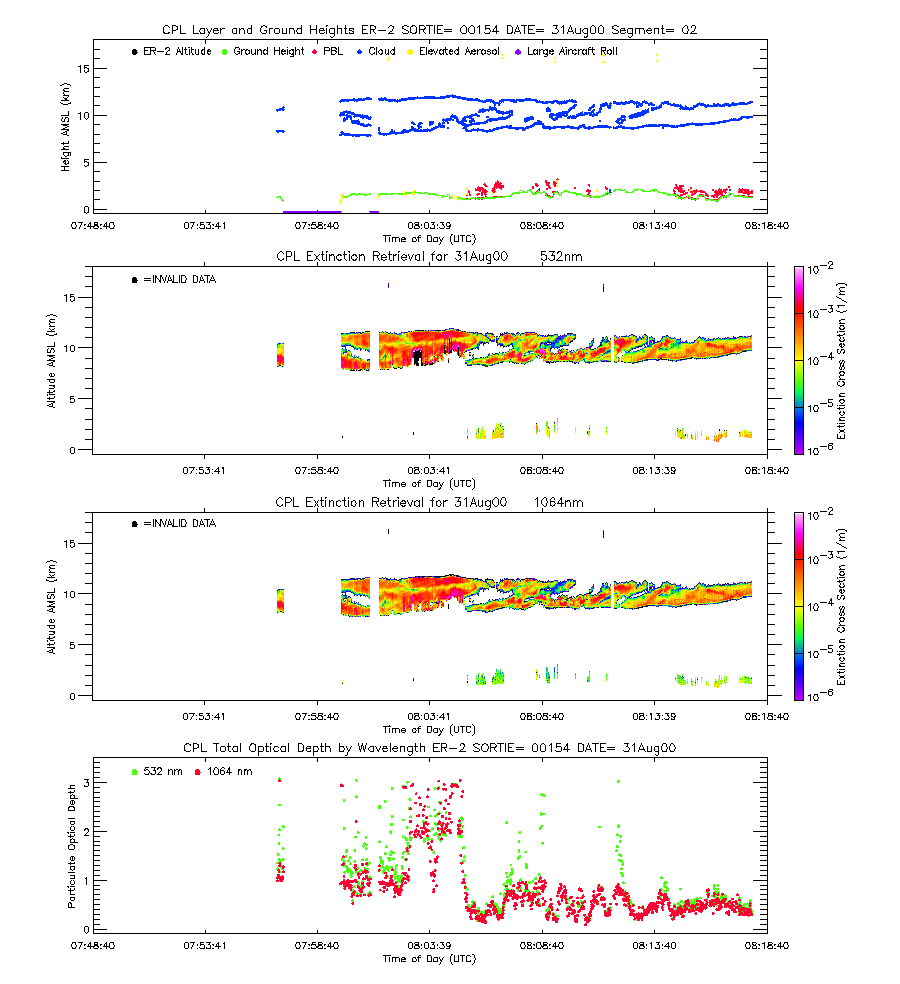

Extinction Segment Image EXTSEG02_00154_31Aug00.gif
GIF
 Start time = 07:56:54 End time = 08:18:00
The following images are for the entire flight:

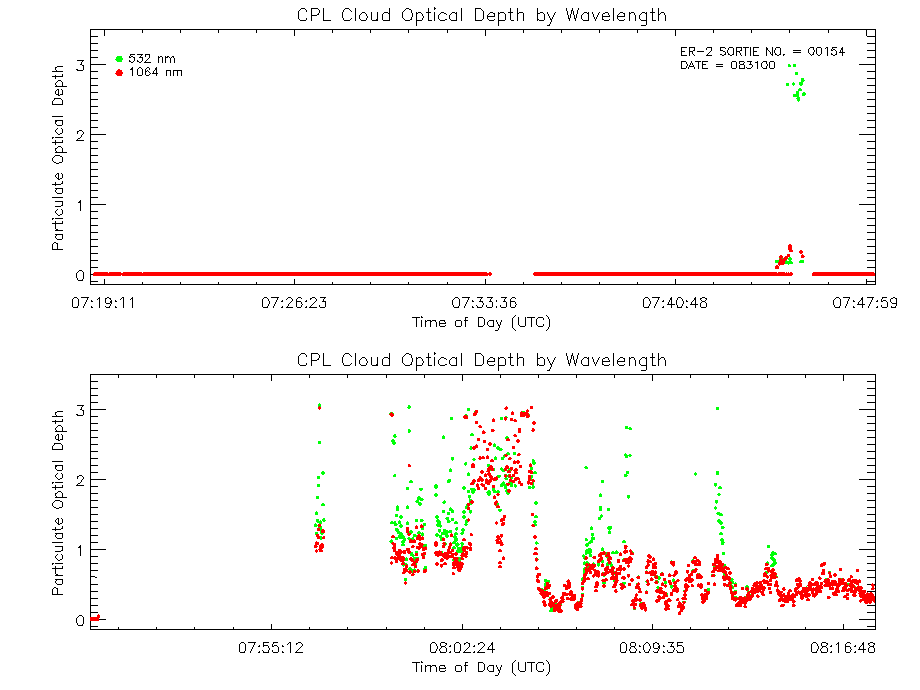

Final Cloud Image COD_00154_31Aug00.gif
GIF
 Cloud Optical Depth Plot (three wavelength)
Final Aerosol Image AOD_00154_31Aug00.gif
GIF

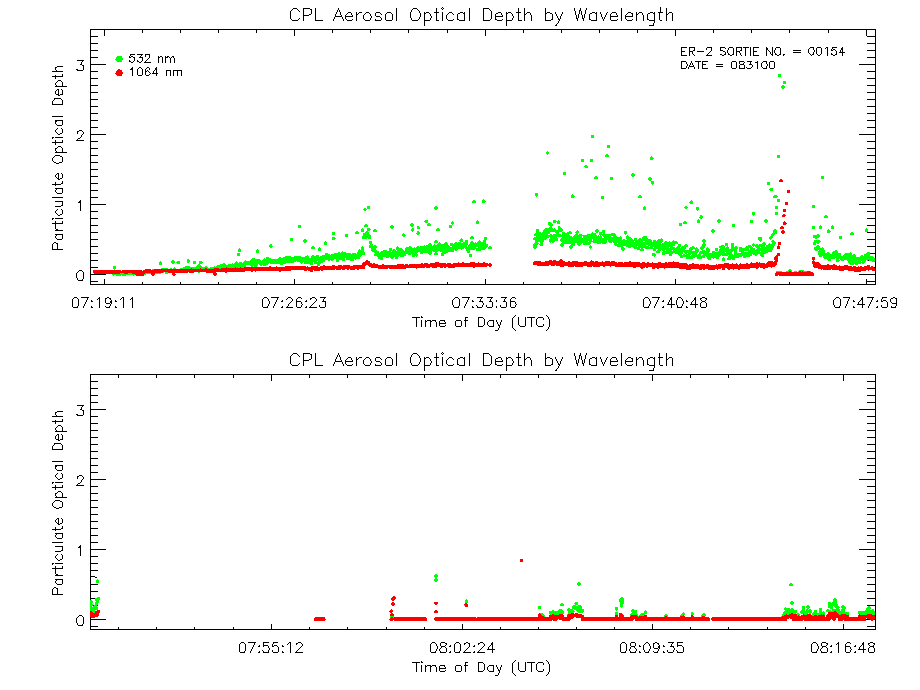

 Aerosol Optical Depth Plot (three wavelengths)
Total Optical Depth Plot TOD_00154_31Aug00.gif
GIF

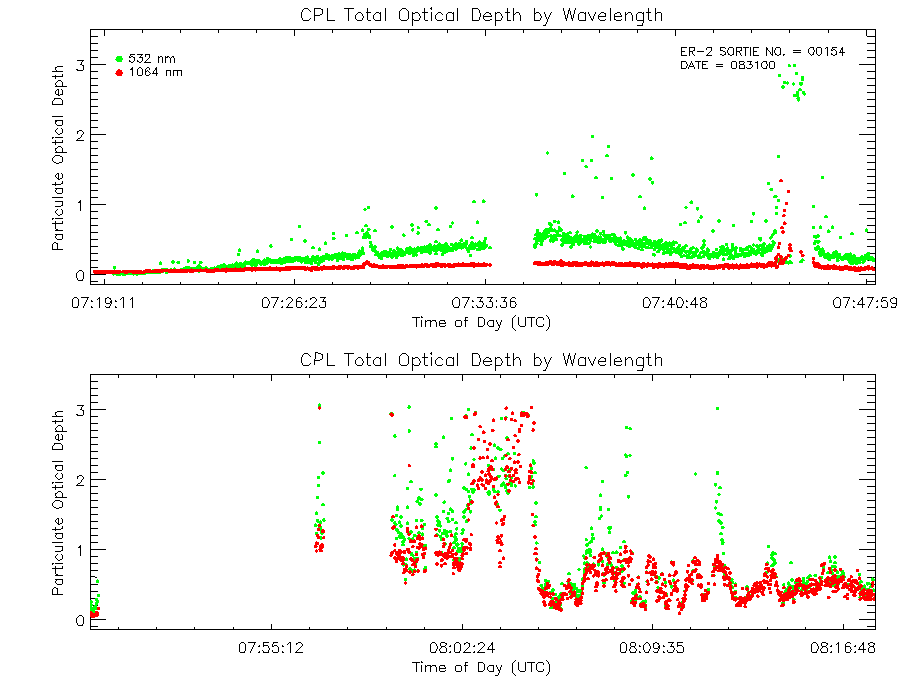

 Total Optical Depth Plot (three wavelength)

Large Binary Output Files
Filename
Type
Descriptions and Comments
NRB_00154_31Aug00.xdr
XDR
 NRB Binary Output containing Lidar profiles after instrument corrections but before calibrated backscatter
OP_00154_31Aug00.xdr
XDR
 Final Optical Binary Output containing optical properties of every layer sensed, including optical depth, extinction-to-backscatter ratio, and extinction profile for 355, 532, and 1064 nm.
cal_00154_31Aug00.final
TEXT
 Request calibration file. This file contains the instrument calibration coefficients used to generate attenuated backscatter data from the NRB binary data.
*Note* Binary output files are large (most files are 500MB).
If you want the binary output files above, click on the filename to download.
